3M Products & Supplies

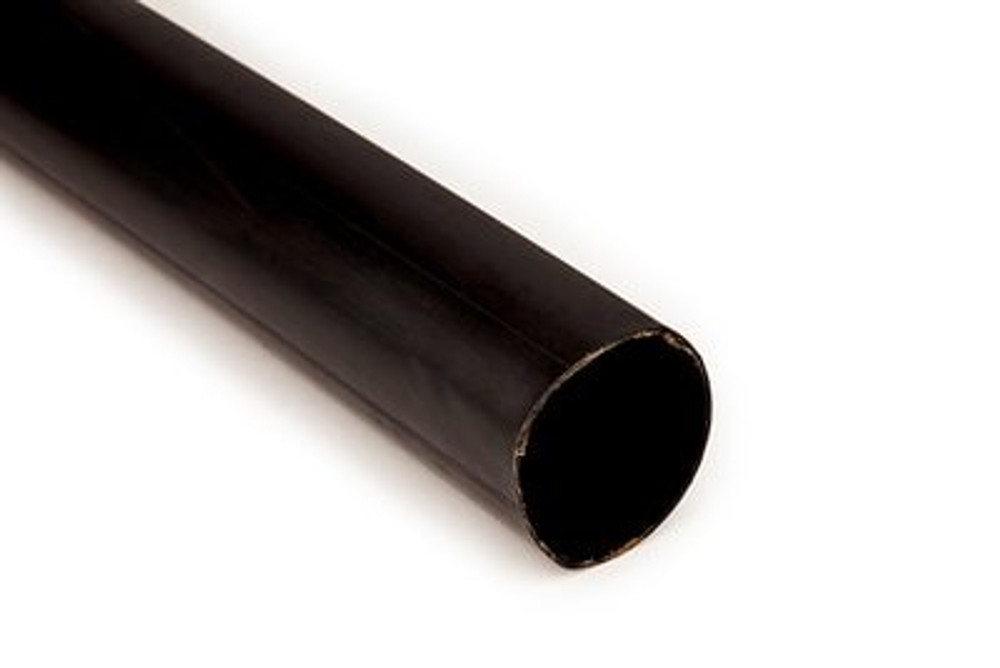

3M™ Multiple Wall Semi-Rigid Polyolefin Tubing MW, Black, 3/8 in, 48 in length stick, 100 ft/Carton, 500 ft/Case - 7100034432

Sold As: 125-Pack
SKU: 7100034432
MPN: 7100034432
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128598245
3M ID: 80611600851
5 Digit UPC: 59824
$800.91 ($6.41 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing MW is a multiple wall tubing offering the advantage of integral, adhesive lined construction. This tubing has a 2.5:1 shrink ratio and provides insulation for 600V rated applications. Semi rigid polyolefin construction ensures moisture seal protection for automotive and marine applications.

Features

  • Provides the advantage of integral, adhesive-lined construction
  • Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
  • Rated for 600V applications
  • Made of black semi-rigid polyolefin

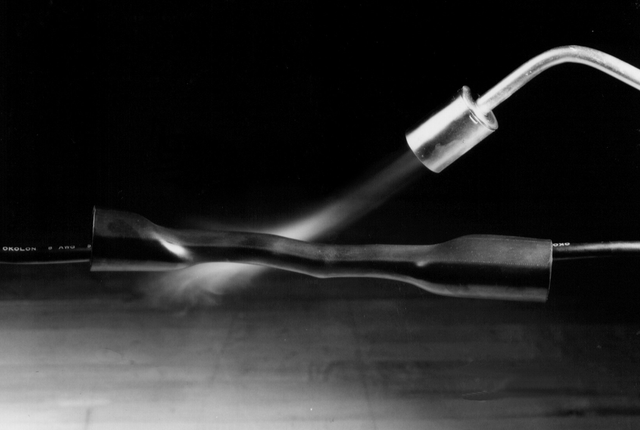

  • Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
UL File NumberE-157227
Operating Temperature (Celsius)-55 °C to 110 °C
Minimum Expanded Tubing I. D. UOMin
Elongation UOMdB
Maximum Operating Temperature (Celsius)110.0
Operating Temperature (Fahrenheit)-67 °F to 230 °F
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)48.0
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
MaterialPolyolefin
Inner Diameter After Shrink (Metric)3.4
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.135
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial)0.375
Inner Diameter Before Shrink (Metric)9.5
Minimum Expanded Tubing I. D.0.375
Overall Length (Imperial) UOMin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Shrink Ratio2.5:1
Non-CorrosiveYes
Overall Length (Metric)1219.0
Flame RetardantNo
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tubing TypeDual Wall (Adhesive Lined)
