3M Products & Supplies

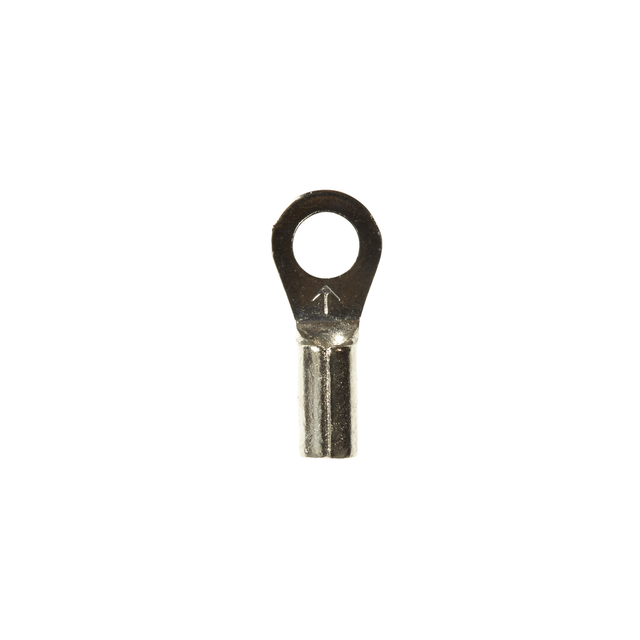

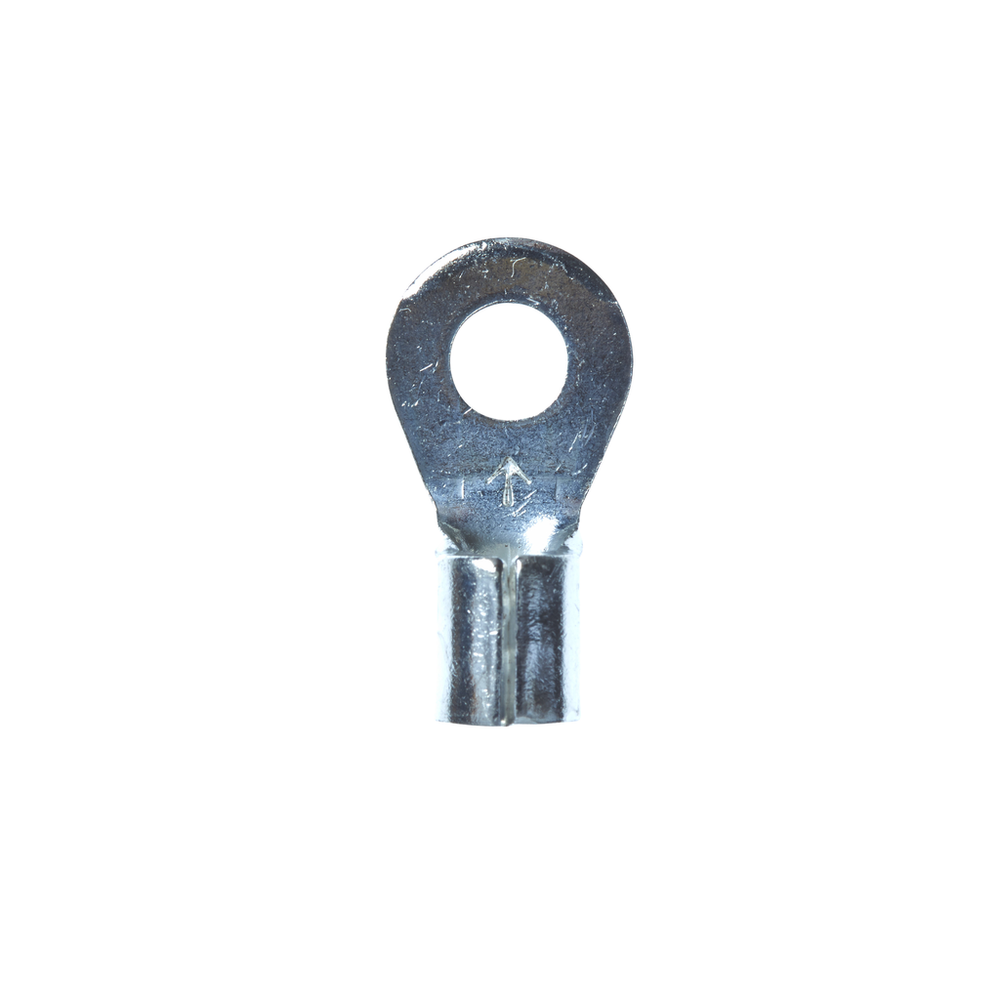

3M™ Non-Insulated Butted Seam Ring Tongue Terminal 13-56S, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163677

Sold As: 1000-Pack
SKU: 7100163677
MPN: 7100163677
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007287278
3M ID: 80601384425
MPN: 13-56S
$111.54 ($0.11 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)3.31 mm²
Minimum Stud Diameter (Metric)7.95
Minimum Stud Diameter (Imperial) UOMin
UL File NumberE23438
Minimum Conductor Size (Imperial)12 AWG
Insulation MaterialNon-insulated
Terminal StyleStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Ring TypeStandard
Maximum Conductor Size (Metric)5.26
Maximum Operating Temperature (Celsius) UOMDegree
Connection TypeCrimp
Maximum Operating Temperature (Celsius)175.0
Country of OriginUnited States
Barrel StyleBrazed
Maximum Conductor Size (Imperial)10 AWG
Minimum Stud Diameter (Metric) UOMmm
Terminal TypeRing
