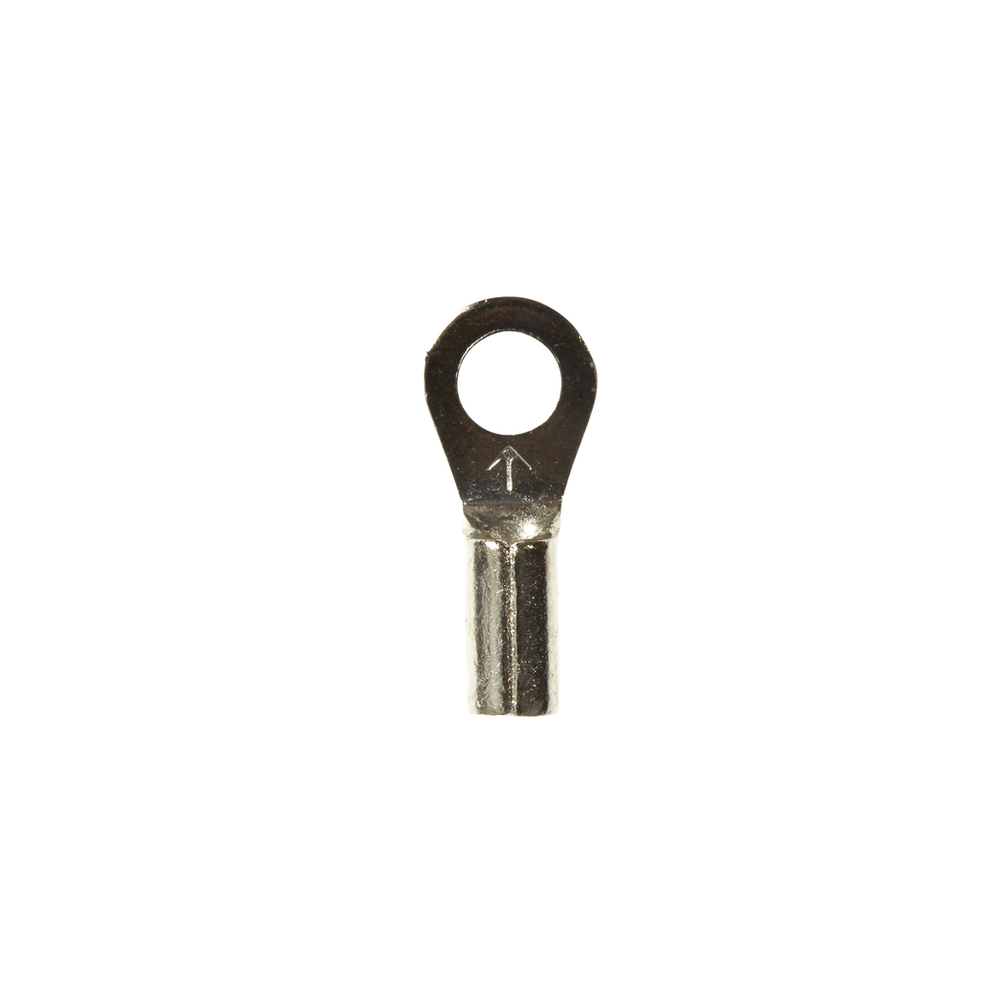

3M™ Non-Insulated Butted Seam Ring Tongue Terminal, 11-56S, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163486

Sold As: 1000-Pack
SKU: 7100163486
MPN: 7100163486
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007279242
3M ID: 80601375951
MPN: 11-56S
$111.54 ($0.11 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Terminal StyleStandard
Connection TypeCrimp
Terminal TypeRing
Maximum Conductor Size (Metric)0.823
Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric)7.95
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric) UOMmm
Insulation MaterialNon-insulated
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius)175.0
Maximum Conductor Size (Imperial)18 AWG
Barrel StyleBrazed
Ring TypeStandard
Country of OriginUnited States
UL File NumberE23438
