3M Products & Supplies

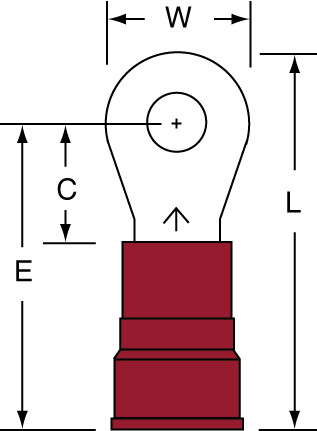

3M™ Nylon Insulated Brazed Seam Ring Tongue Terminal, 14-10S-WN, standard-style ring tongue fits around the stud - 7100164212

Sold As: 1000-Pack
SKU: 7100164212
MPN: 7100164212
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082316
3M ID: 80610153886
MPN: 14-10S-WN
$367.90 ($0.37 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Metric)5.0
Minimum Conductor Size (Metric)8.37 mm²
Maximum Operating Temperature (Celsius)175.0
Minimum Conductor Size (Imperial)8 AWG
Ring TypeStandard
Terminal StyleStandard
Country of OriginUnited States
Insulation MaterialNylon
Connection TypeCrimp
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)8.37
UL File NumberE23438
Terminal TypeRing
Barrel StyleBrazed
Maximum Conductor Size (Imperial)8 AWG
Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
