3M Products & Supplies

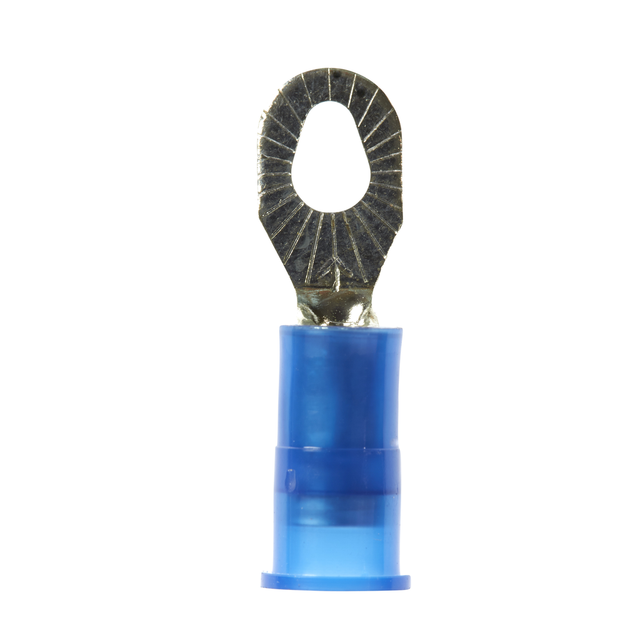

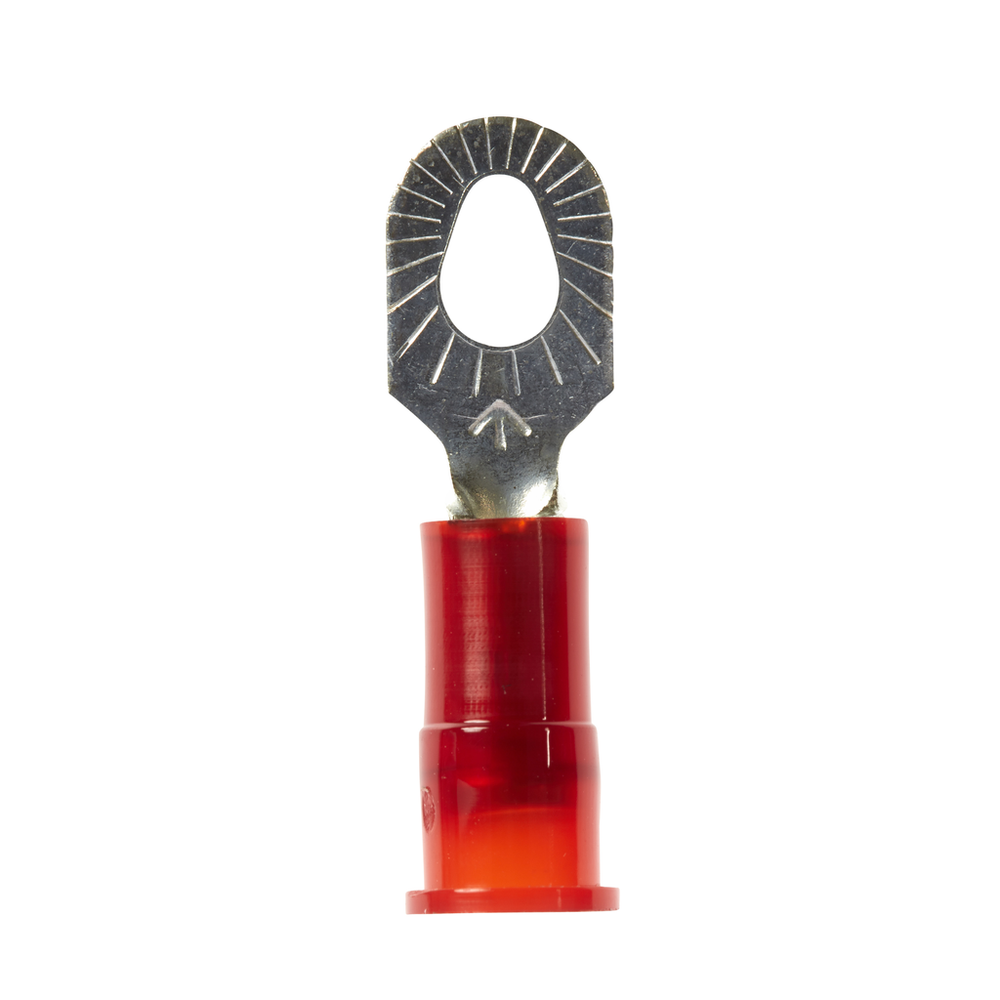

3M™ Nylon Insulated with Insulation Grip Multi-Stud Ring Tongue Termi, 11-26-NB - 7100163841

Sold As: 1000-Pack
SKU: 7100163841
MPN: 7100163841
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007299011
3M ID: 80601397013
MPN: 11-26-NB
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Minimum Conductor Size (Imperial)22 AWG
Connection TypeCrimp
Ring TypeStandard
UL File NumberE23438
Insulation MaterialNylon with Insulation Grip
Maximum Operating Temperature (Celsius)175.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Imperial) UOMin
Barrel StyleBrazed
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)0.326 mm²
Minimum Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Metric)0.823
Maximum Conductor Size (Imperial)18 AWG
Barrel Length (Imperial)0.25 Inch
Terminal TypeRing
Country of OriginUnited States
Minimum Stud Diameter (Metric)2.0
Terminal StyleStandard
