3M Products & Supplies

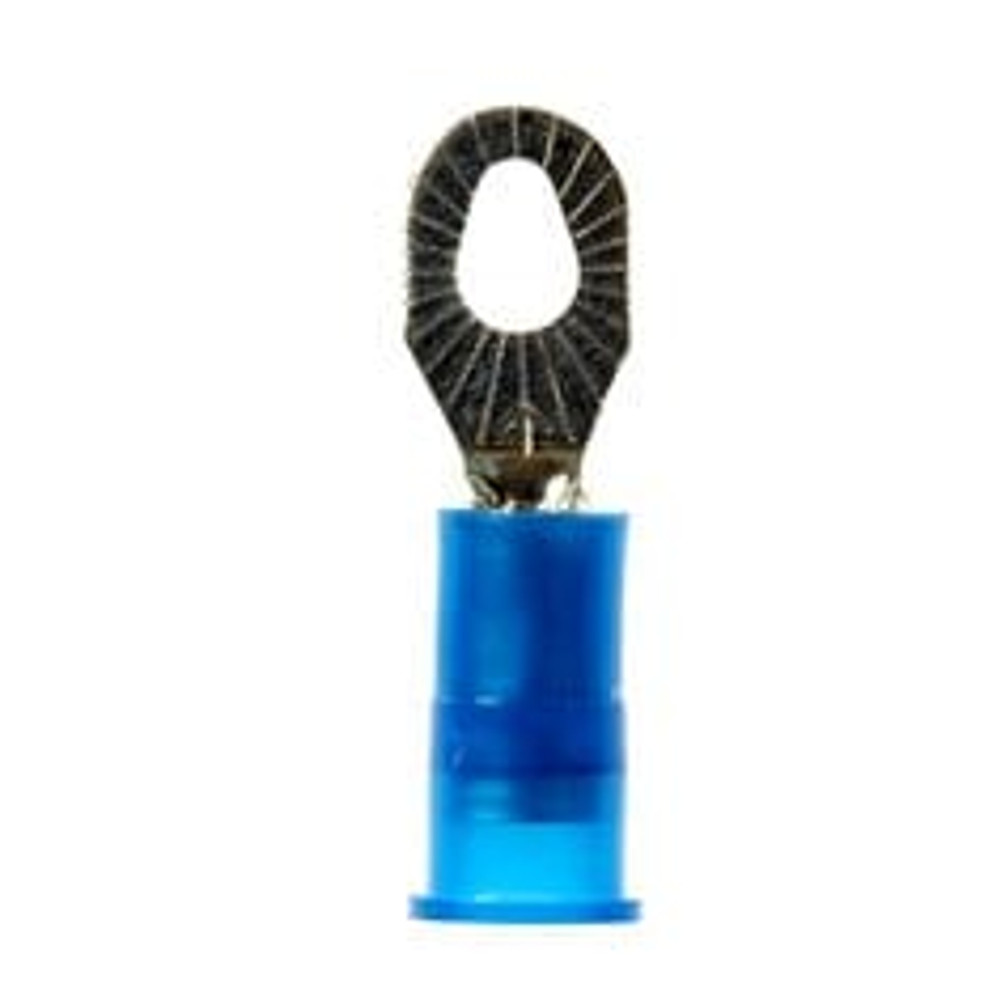

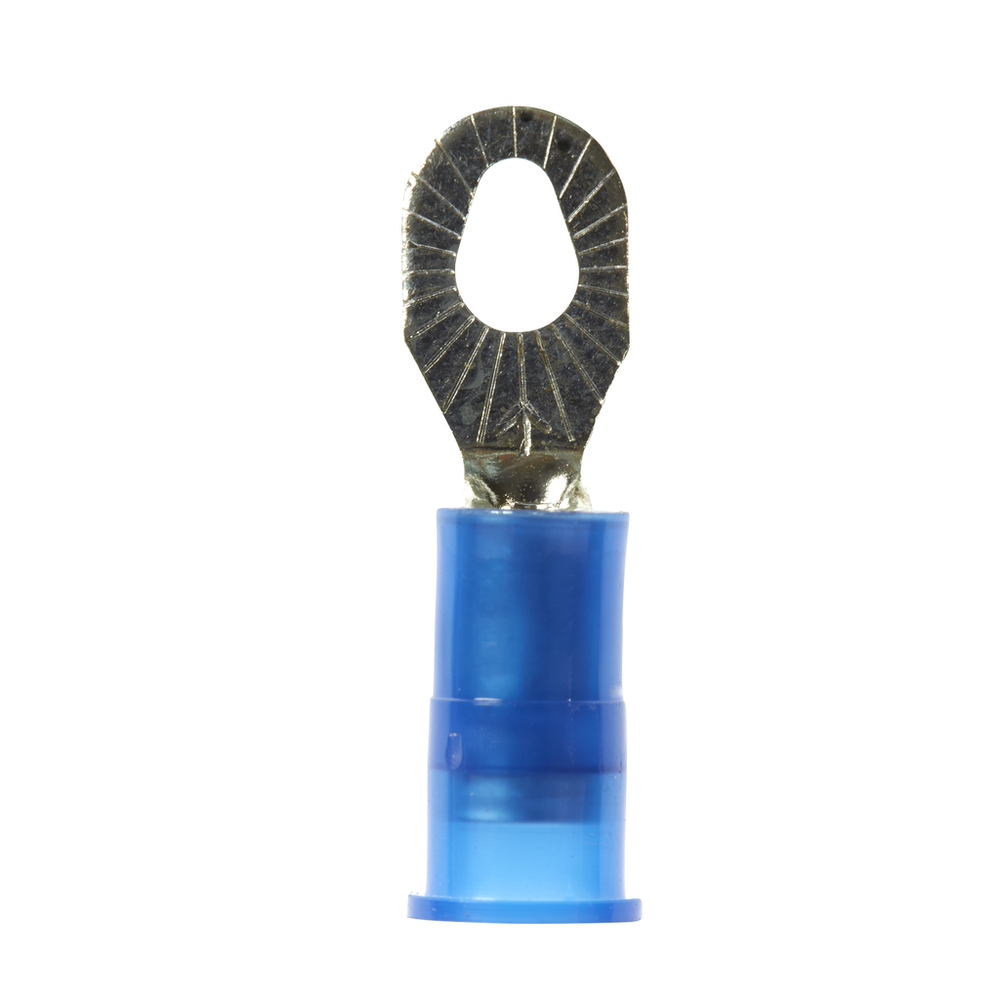

3M™ Nylon Insulated with Insulation Grip Multi-Stud Ring Tongue Termi, 12-26-NB - 7100163842

Sold As: 1000-Pack
SKU: 7100163842
MPN: 7100163842
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007299028
3M ID: 80601397021
MPN: 12-26-NB
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Minimum Conductor Size (Metric)1.31 mm²
Minimum Conductor Size (Imperial)16 AWG
Insulation MaterialNylon with Insulation Grip
Ring TypeStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)175.0
Terminal StyleStandard
Minimum Stud Diameter (Metric)2.0
Maximum Conductor Size (Imperial)14 AWG
Connection TypeCrimp
Country of OriginUnited States
UL File NumberE23438
Barrel StyleBrazed
Minimum Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Metric)2.08
Terminal TypeRing
