3M Products & Supplies

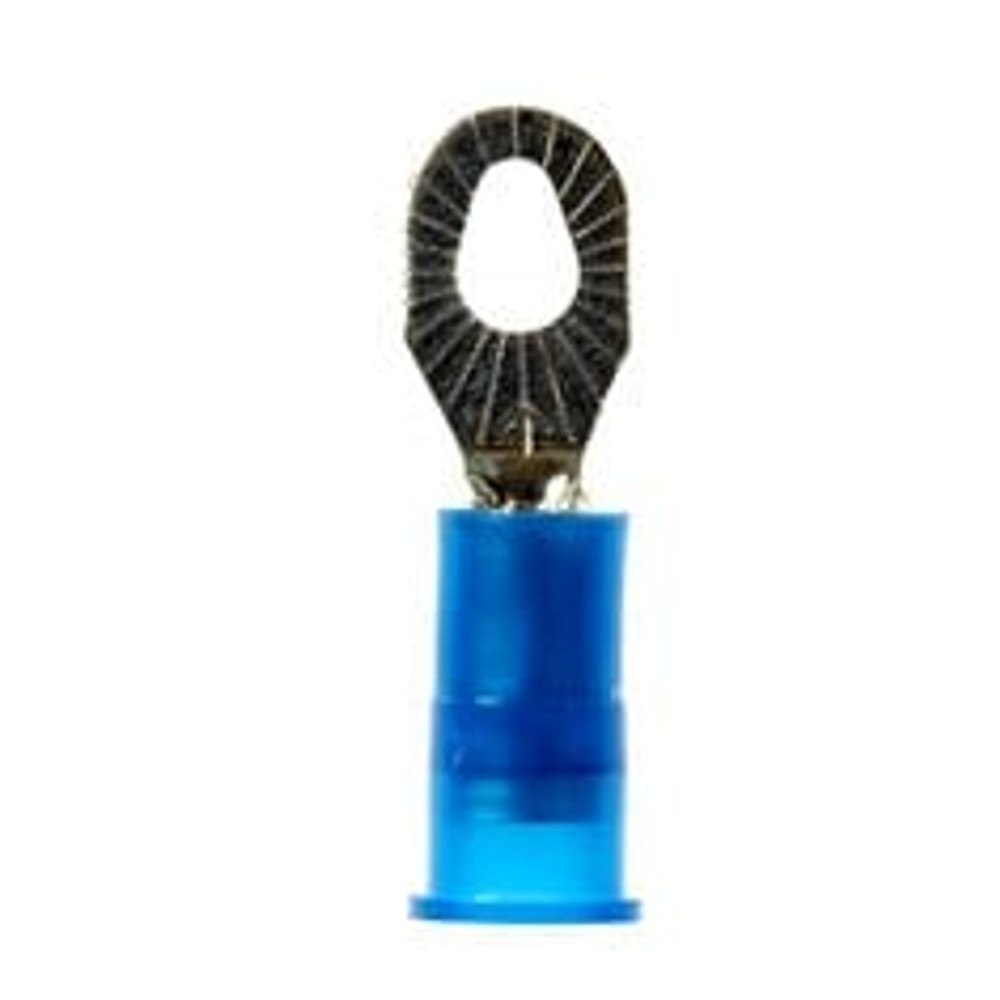

3M™ Nylon Insulated with Insulation Grip Multi-Stud Ring Tongue Termi, 13-610-NB - 7100163832

Sold As: 1000-Pack
SKU: 7100163832
MPN: 7100163832
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007296492
3M ID: 80601394309
MPN: 13-610-NB
$269.72 ($0.27 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeRing
Barrel StyleBrazed
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)3.31 mm²
Country of OriginUnited States
Minimum Stud Diameter (Metric)3.5
Minimum Stud Diameter (Imperial) UOMin
Terminal StyleStandard
Ring TypeStandard
Connection TypeCrimp
Insulation MaterialNylon with Insulation Grip
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Imperial)10 AWG
Maximum Conductor Size (Metric)5.26
Maximum Operating Temperature (Celsius)175.0
UL File NumberE23438
