3M Products & Supplies

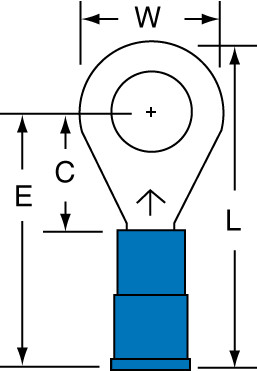

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal, 11-14S-NB, standard-style ring tongue fits around the stud - 7100163465

Sold As: 1000-Pack
SKU: 7100163465
MPN: 7100163465
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007278887
3M ID: 80601375597
MPN: 11-14S-NB
$221.02 ($0.22 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Minimum Conductor Size (Imperial)22 AWG
Terminal TypeRing
Insulation MaterialNylon with Insulation Grip
Maximum Conductor Size (Metric)0.823
Connection TypeCrimp
Country of OriginUnited States
Minimum Stud Diameter (Imperial) UOMin
UL File NumberE23438
Barrel Length (Imperial)0.25 Inch
Barrel StyleBrazed
Minimum Conductor Size (Metric)0.326 mm²
Ring TypeStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Metric)6.35
Maximum Operating Temperature (Celsius)175.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)18 AWG
Terminal StyleStandard
Minimum Stud Diameter (Metric) UOMmm
