3M Products & Supplies

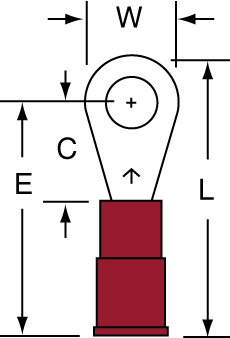

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal, 11-8-NB, standard-style ring tongue fits around the stud - 7100163461

Sold As: 1000-Pack
SKU: 7100163461
MPN: 7100163461
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007278849
3M ID: 80601375555
MPN: 11-8-NB
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)18 AWG
Minimum Stud Diameter (Metric)4.0
Country of OriginUnited States
Minimum Conductor Size (Imperial)22 AWG
Minimum Stud Diameter (Metric) UOMmm
Connection TypeCrimp
Ring TypeStandard
Insulation MaterialNylon with Insulation Grip
Terminal TypeRing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Barrel StyleBrazed
Maximum Conductor Size (Metric)0.823
Maximum Operating Temperature (Celsius)175.0
Terminal StyleStandard
UL File NumberE23438
Minimum Conductor Size (Metric)0.326 mm²
