3M Products & Supplies

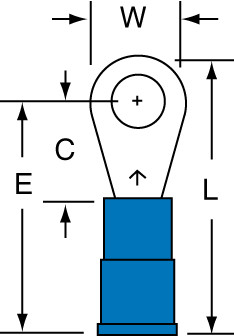

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal, L-11-8-NB, standard-style ring tongue fits around the stud - 7100163462

Sold As: 1000-Pack
SKU: 7100163462
MPN: 7100163462
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007278856
3M ID: 80601375563
MPN: L-11-8-NB
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Barrel StyleBrazed
Connection TypeCrimp
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Metric)0.326 mm²
Minimum Stud Diameter (Metric)4.0
Barrel Length (Imperial)0.25 Inch
Terminal StyleStandard
Maximum Operating Temperature (Celsius)175.0
Insulation MaterialNylon with Insulation Grip
Maximum Conductor Size (Metric)0.823
UL File NumberE23438
Minimum Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Imperial)18 AWG
Country of OriginUnited States
Ring TypeStandard
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Imperial) UOMin
Terminal TypeRing
