3M Products & Supplies

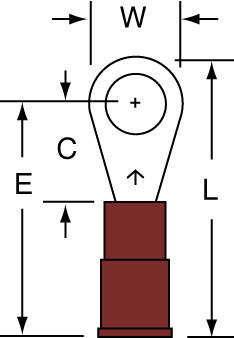

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal, L-11-10-NB, standard-style ring tongue fits around the stud - 7100163464

Sold As: 1000-Pack
SKU: 7100163464
MPN: 7100163464
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007278870
3M ID: 80601375589
MPN: L-11-10-NB
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Barrel StyleBrazed
Maximum Operating Temperature (Celsius)175.0
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleStandard
Maximum Conductor Size (Imperial)18 AWG
Ring TypeStandard
Minimum Conductor Size (Metric)0.326 mm²
UL File NumberE23438
Minimum Stud Diameter (Metric)5.0
Minimum Stud Diameter (Metric) UOMmm
Connection TypeCrimp
Country of OriginUnited States
Minimum Conductor Size (Imperial)22 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeRing
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)0.823
Minimum Stud Diameter (Imperial) UOMin
Insulation MaterialNylon with Insulation Grip
