3M Products & Supplies

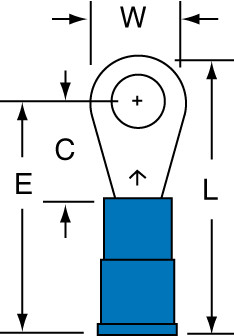

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal L-12-8-NB, standard-style ring tongue fits around the stud - 7100163552

Sold As: 1000-Pack
SKU: 7100163552
MPN: 7100163552
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007282891
3M ID: 80601379813
MPN: L-12-8-NB
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Ring TypeStandard
Maximum Operating Temperature (Celsius)175.0
Barrel StyleBrazed
Terminal StyleStandard
Minimum Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)2.08
Minimum Conductor Size (Metric)1.31 mm²
Country of OriginUnited States
Insulation MaterialNylon with Insulation Grip
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)16 AWG
Connection TypeCrimp
Terminal TypeRing
UL File NumberE23438
Minimum Stud Diameter (Metric)4.0
