3M Products & Supplies

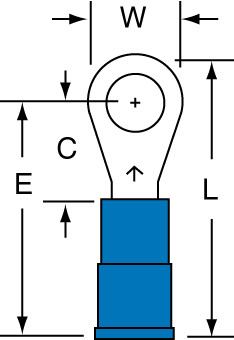

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal L-12-10-NB, standard-style ring tongue fits around the stud - 7100163554

Sold As: 1000-Pack
SKU: 7100163554
MPN: 7100163554
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007282914
3M ID: 80601379839
MPN: L-12-10-NB
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Barrel StyleBrazed
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Imperial)16 AWG
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius)175.0
Minimum Stud Diameter (Imperial) UOMin
Ring TypeStandard
Maximum Conductor Size (Imperial)14 AWG
Connection TypeCrimp
Maximum Conductor Size (Metric)2.08
Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleStandard
UL File NumberE23438
Terminal TypeRing
Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Metric) UOMmm
Insulation MaterialNylon with Insulation Grip
Minimum Stud Diameter (Metric)5.0
