3M Products & Supplies

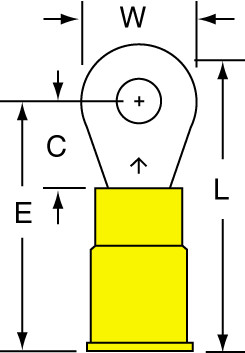

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal 13-6-NB, standard-style ring tongue fits around the stud - 7100163648

Sold As: 1000-Pack
SKU: 7100163648
MPN: 7100163648
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007286936
3M ID: 80601384086
MPN: 13-6-NB
$221.02 ($0.22 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)3.31 mm²
Insulation MaterialNylon with Insulation Grip
Minimum Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Connection TypeCrimp
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius)175.0
Ring TypeStandard
Barrel Length (Imperial)0.25 Inch
Terminal StyleStandard
Maximum Conductor Size (Metric)5.26
Minimum Stud Diameter (Metric) UOMmm
Country of OriginUnited States
Minimum Stud Diameter (Metric)3.5
Barrel StyleBrazed
Terminal TypeRing
UL File NumberE23438
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
