3M Products & Supplies

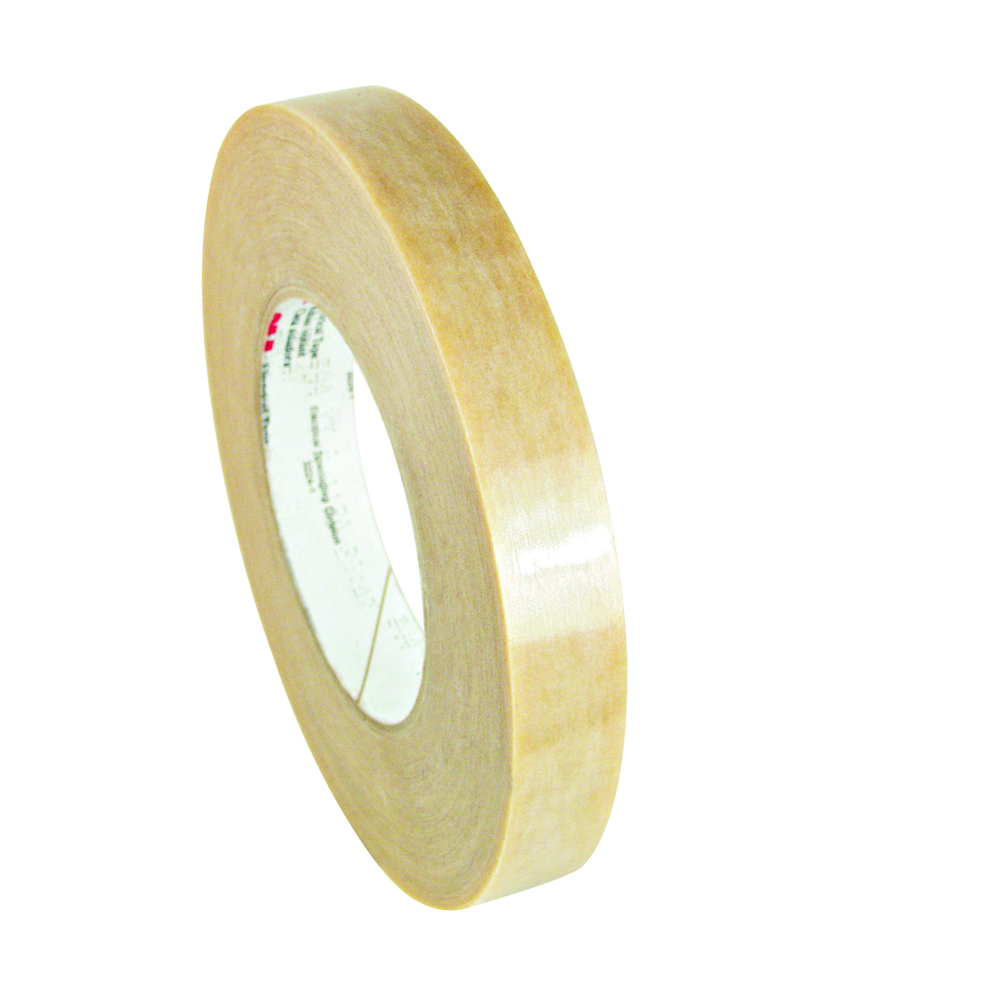

3M™ Polyester Film Electrical Tape 58, 1 in X 72 yd, Clear, 36 Rolls/Case - 7010045318

Sold As: 36-Pack
SKU: 7010045318
MPN: 7010045318
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128565957
3M ID: 80611431836
5 Digit UPC: 56595
$1,796.24 ($49.90 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrical Tape 58 is a general purpose, polyester film tape that has a thermosetting, rubber adhesive which provides excellent adherence. This high temperature tape offers excellent resistance to chemicals, solvents, moisture, abrasion and cu through. RoHS 2011/65/EU Compliant .

Features

  • Printable
  • UL Recognized Class 130°C/CSA
  • Solvent resistant without thermosetting
  • Excellent Flagging Resistant
  • UL Recognized flame retardant
  • Excellent shelf life
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginMexico
Dielectric Strength UOMV
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)0.0
Shelf Life UOMYear
Overall Length (Metric)65.8
Rolls per Case36.0
Backing (Carrier) MaterialPolyester
Insulation Resistance1 x 10^6 megohms
Maximum Operating Temperature (Fahrenheit)266.0
Maximum Operating Temperature (Celsius)130.0
Elongation at Break110
Overall Width (Metric)25.4
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)32.0
Overall Width (Imperial)1.0
Maximum Operating Temperature (Celsius) UOMDegree
Product MarketsElectrical Equipment Manufacturing
Adhesive TypeThermosetting Rubber
Electrolytic Corrosion Factor1.0
Overall Length (Imperial)72.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength7000.0
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
