3M Products & Supplies

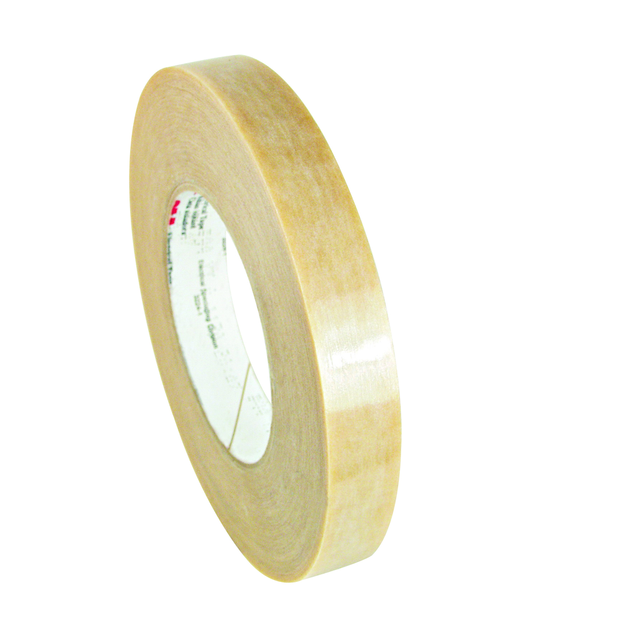

3M™ Polyester Film Electrical Tape 58, 1/4 in X 72 yd, Clear, 144 Rolls/Case - 7010045319

Sold As: 144-Pack
SKU: 7010045319
MPN: 7010045319
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128565964
3M ID: 80611431844
5 Digit UPC: 56596
$1,799.48 ($12.50 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrical Tape 58 is a general purpose, polyester film tape that has a thermosetting, rubber adhesive which provides excellent adherence. This high temperature tape offers excellent resistance to chemicals, solvents, moisture, abrasion and cu through. RoHS 2011/65/EU Compliant .

Features

  • UL Recognized flame retardant
  • Solvent resistant without thermosetting
  • Printable
  • Excellent shelf life
  • Excellent Flagging Resistant
  • UL Recognized Class 130°C/CSA
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginMexico
Maximum Operating Temperature (Celsius)130.0
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Overall Width (Metric)6.35
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Adhesive TypeThermosetting Rubber
Product MarketsElectrical Equipment Manufacturing
Minimum Operating Temperature (Celsius) UOMDegree
Dielectric Strength UOMV
Overall Width (Imperial)0.25
Backing (Carrier) MaterialPolyester
Elongation at Break110
Overall Length (Metric)65.8
Minimum Operating Temperature (Celsius)0.0
Rolls per Case144.0
Maximum Operating Temperature (Fahrenheit)266.0
Electrolytic Corrosion Factor1.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)72.0
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Shelf Life UOMYear
Minimum Operating Temperature (Fahrenheit) UOMDegree
Insulation Resistance1 x 10^6 megohms
Minimum Operating Temperature (Fahrenheit)32.0
Dielectric Strength7000.0
