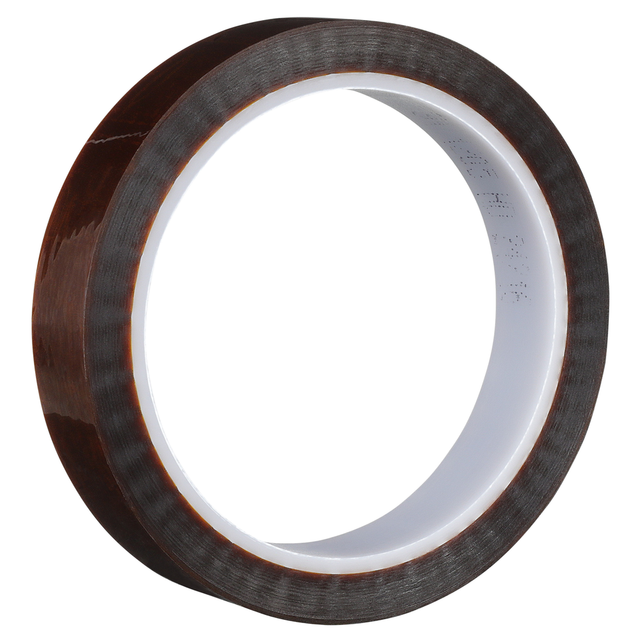

3M™ Polyimide Film Electrical Tape 1205, 1 1/2 in X 36 yds, 3-in plastic core, Mini-Case - 7100065800

Sold As: 6-Pack
SKU: 7100065800
MPN: 7100065800
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138494810
3M ID: 80610876304
5 Digit UPC: 49481
$982.54 ($163.76 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of -40°C to 155°C (-40 to 311 °F) without the loss of electrical properties and tensile strength.

Features

  • Highly conformable with a pressure-sensitive, acrylic adhesive
  • Withstands a temperature rating of -40°C to 155°C (-40°F to 311°F)
  • Flame-retardant and has polyimide backing
  • UL Listed and RoHS Compliant
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Designed for anchoring leads and terminal boards

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Metric)38.1
Overall Width (Imperial) UOMin
Tensile Strength (Metric) UOMN/cm
Total Tape Thickness without Liner (Metric)0.081
Elongation at Break55%
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Tensile Strength (Metric)53.0
Dielectric Strength7500.0
Product ColorAmber
Overall Width (Imperial)1.5
Backing (Carrier) MaterialPolyimide Film
Product MarketsElectrical Equipment Manufacturing
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)36.0
Adhesive MaterialAcrylic
Maximum Operating Temperature (Celsius) UOMDegree
Dielectric Strength UOMV
Maximum Operating Temperature (Fahrenheit) UOMDegree
Electrolytic Corrosion Factor1.0
Maximum Operating Temperature (Fahrenheit)311.0
ApplicationInsulation
Total Tape Thickness without Liner (Imperial)3.2
Overall Length (Metric)33.0
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius)155.0
Shelf Life UOMYear
Overall Length (Imperial) UOMyd
