3M Products & Supplies

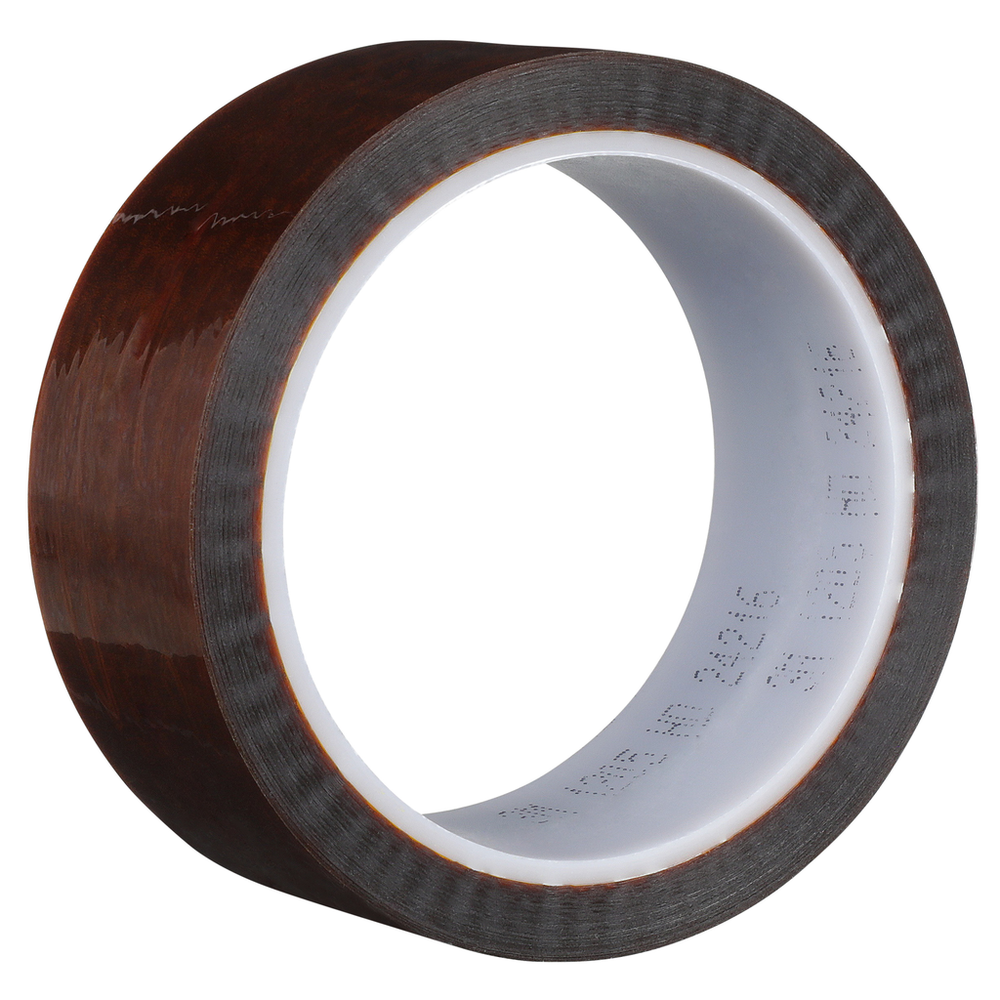

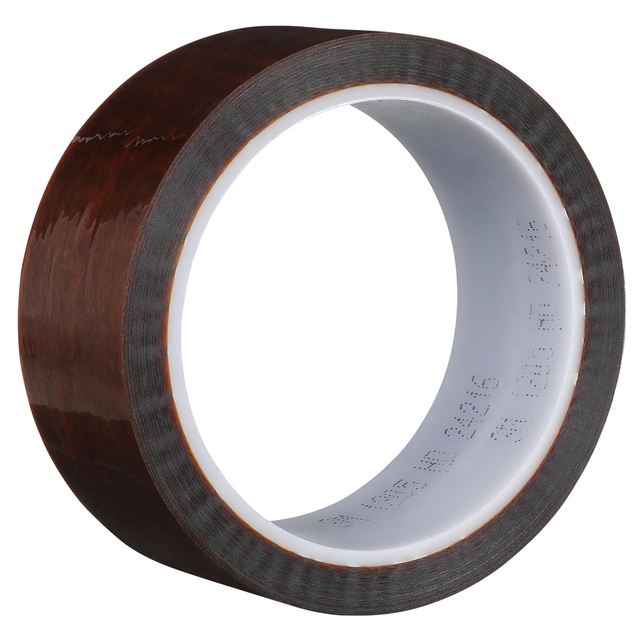

3M™ Polyimide Film Electrical Tape 1205, 2 in X 36 yds, Mini-Case, 3-in plastic core, - 7010297644

Sold As: 6-Pack
SKU: 7010297644
MPN: 7010297644
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138493424
3M ID: 80610879316
5 Digit UPC: 49342
$1,007.53 ($167.92 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of -40°C to 155°C (-40 to 311 °F) without the loss of electrical properties and tensile strength.

Features

  • Withstands a temperature rating of -40°C to 155°C (-40°F to 311°F)
  • Flame-retardant and has polyimide backing
  • Highly conformable with a pressure-sensitive, acrylic adhesive
  • Designed for anchoring leads and terminal boards
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • UL Listed and RoHS Compliant

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Metric)50.8
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
Dielectric Strength UOMV
Product MarketsElectrical Equipment Manufacturing
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius)155.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.081
Product ColorAmber
Adhesive TypeAcrylic
ApplicationInsulation
Overall Length (Metric)33.0
Adhesive MaterialAcrylic
Total Tape Thickness without Liner (Imperial)3.2
Backing (Carrier) MaterialPolyimide Film
Elongation at Break55%
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Tensile Strength (Metric)53.0
Maximum Operating Temperature (Fahrenheit)311.0
Shelf Life UOMYear
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)2.0
Dielectric Strength7500.0
Electrolytic Corrosion Factor1.0
Tensile Strength (Metric) UOMN/cm
Overall Length (Imperial)36.0
