3M Products & Supplies

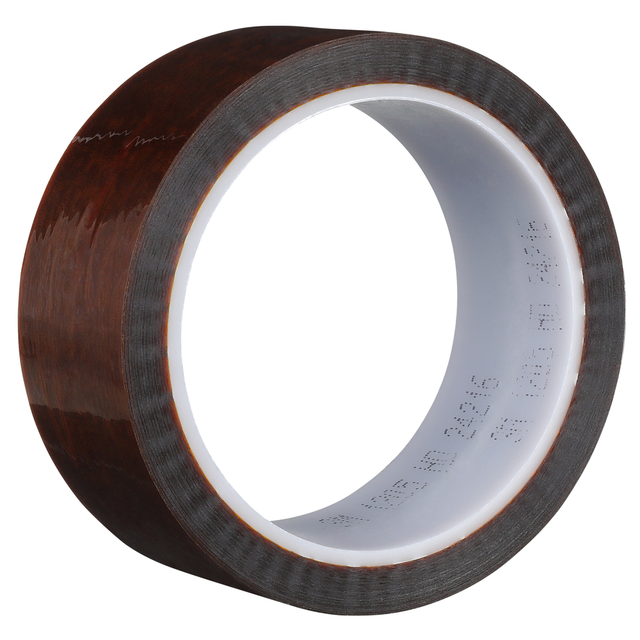

3M™ Polyimide Film Electrical Tape 1205, 6 in x 36 yds, 3 in plastic core, Mini-Case - 7010320110

Sold As: 2-Pack
SKU: 7010320110
MPN: 7010320110
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051125652940
3M ID: 80621000449
5 Digit UPC: 65294
$915.85 ($457.93 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of -40°C to 155°C (-40 to 311 °F) without the loss of electrical properties and tensile strength.

Features

  • Highly conformable with a pressure-sensitive, acrylic adhesive
  • Withstands a temperature rating of -40°C to 155°C (-40°F to 311°F)
  • Designed for anchoring leads and terminal boards
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • UL Listed and RoHS Compliant
  • Flame-retardant and has polyimide backing

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Specifications MetRoHS 2011/65/EU
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric)0.081
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)6.0
Dielectric Strength7500.0
ApplicationInsulation
Product MarketsElectrical Equipment Manufacturing
Dielectric Strength UOMV
Overall Length (Imperial)36.0
Elongation at Break55%
Overall Width (Imperial) UOMin
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric)53.0
Maximum Operating Temperature (Celsius)155.0
Total Tape Thickness without Liner (Imperial)3.2
Overall Width (Metric)152.4
Backing (Carrier) MaterialPolyimide Film
Tensile Strength (Metric) UOMN/cm
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Overall Length (Metric)33.0
Product ColorAmber
Shelf Life UOMYear
Total Tape Thickness without Liner (Imperial) UOMmil
Electrolytic Corrosion Factor1.0
Maximum Operating Temperature (Fahrenheit)311.0
Adhesive MaterialAcrylic
Maximum Operating Temperature (Celsius) UOMDegree
