3M Products & Supplies

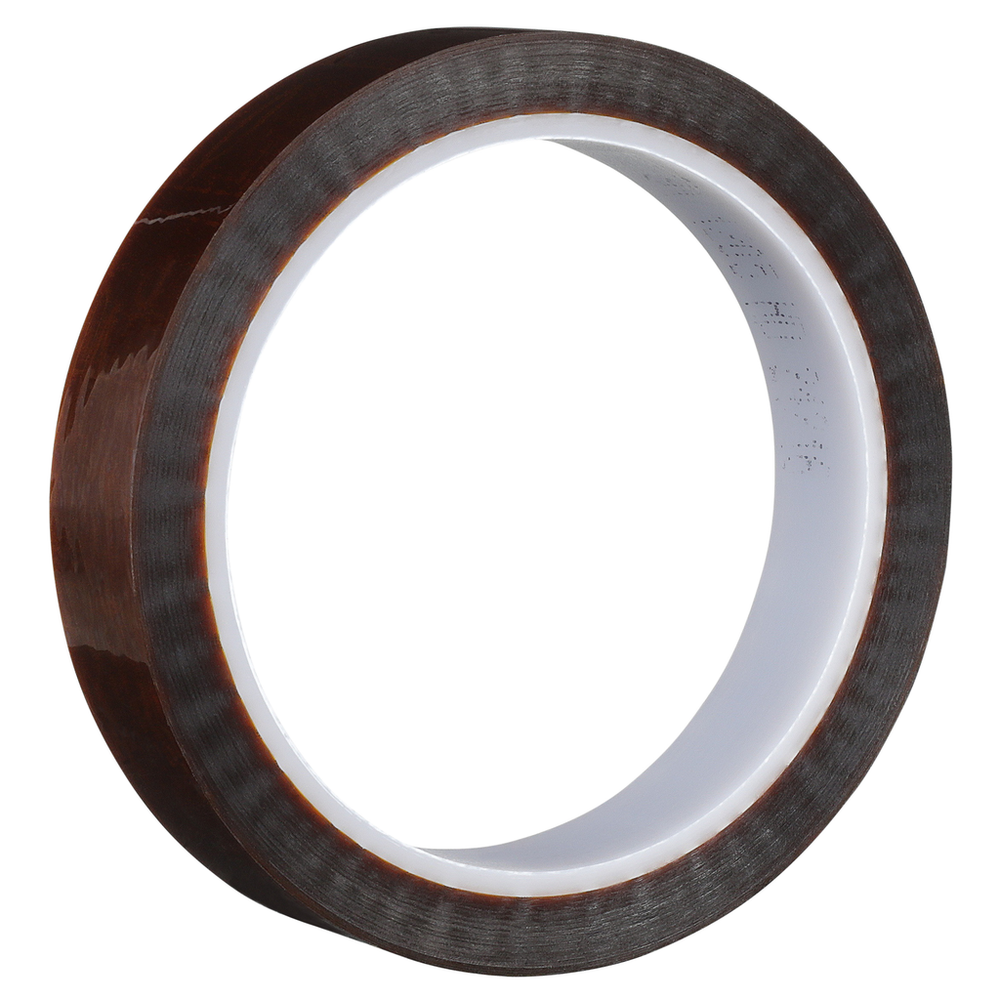

3M™ Polyimide Film Electrical Tape 1205, 5/8 in X 36 yds, 3-in plastic core, Mini-Case - 7010304066

Sold As: 15-Pack
SKU: 7010304066
MPN: 7010304066
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128546031
3M ID: 80611239247
5 Digit UPC: 54603
$715.96 ($47.73 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of -40°C to 155°C (-40 to 311 °F) without the loss of electrical properties and tensile strength.

Features

  • Flame-retardant and has polyimide backing
  • UL Listed and RoHS Compliant
  • Designed for anchoring leads and terminal boards
  • Highly conformable with a pressure-sensitive, acrylic adhesive
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Withstands a temperature rating of -40°C to 155°C (-40°F to 311°F)

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Tensile Strength (Metric)53.0
ApplicationInsulation
Dielectric Strength7500.0
Adhesive MaterialAcrylic
Total Tape Thickness without Liner (Metric) UOMmm
Adhesive TypeAcrylic
Overall Width (Metric)15.875
Overall Length (Metric) UOMm
Dielectric Strength UOMV
Overall Width (Imperial) UOMin
Product ColorAmber
Maximum Operating Temperature (Celsius)155.0
Product MarketsElectrical Equipment Manufacturing
Total Tape Thickness without Liner (Imperial)3.2
Total Tape Thickness without Liner (Metric)0.081
Total Tape Thickness without Liner (Imperial) UOMmil
Electrolytic Corrosion Factor1.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)311.0
Overall Length (Metric)33.0
Elongation at Break55%
Overall Length (Imperial)36.0
Overall Width (Metric) UOMmm
Specifications MetRoHS 2011/65/EU
Backing (Carrier) MaterialPolyimide Film
Overall Width (Imperial)0.625
Shelf Life UOMYear
Overall Length (Imperial) UOMyd
Tensile Strength (Metric) UOMN/cm
