3M Products & Supplies

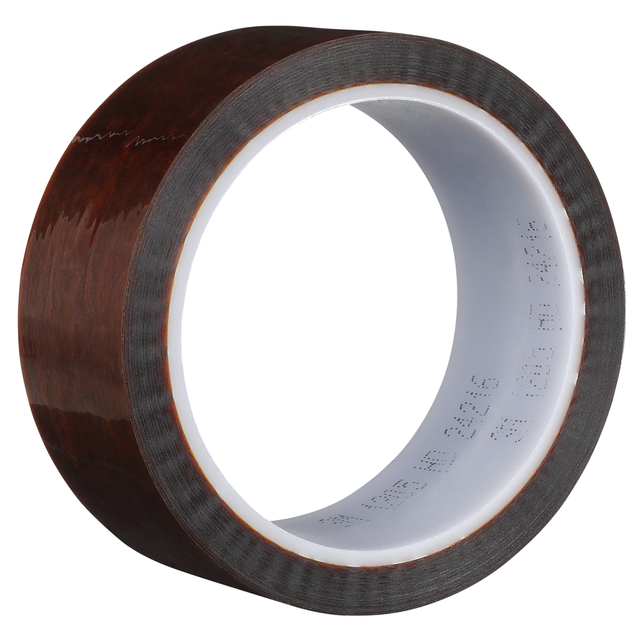

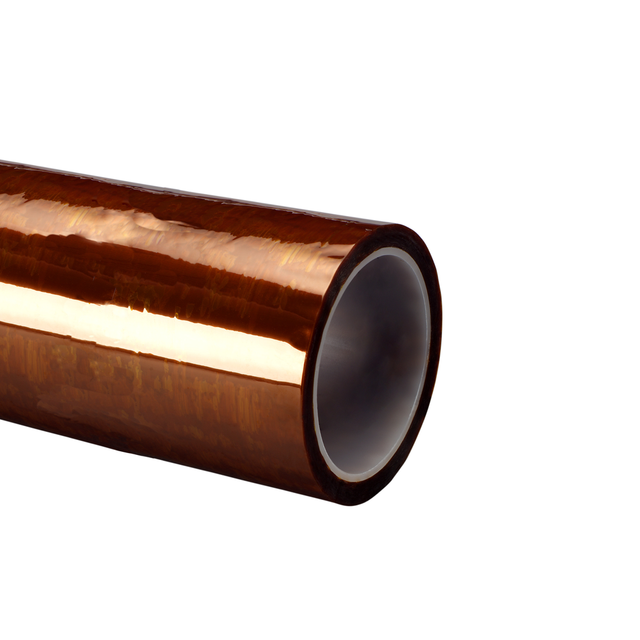

3M™ Polyimide Film Electrical Tape 1205, 1 in x 144 yds, 3-in plastic core, 9 Rolls/Case - 7010397208

Sold As: 9-Pack
SKU: 7010397208
MPN: 7010397208
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051125652100
3M ID: 80611088388
5 Digit UPC: 65210
$2,747.49 ($305.28 / Count)
Hurry up! Current stock:

Product Description

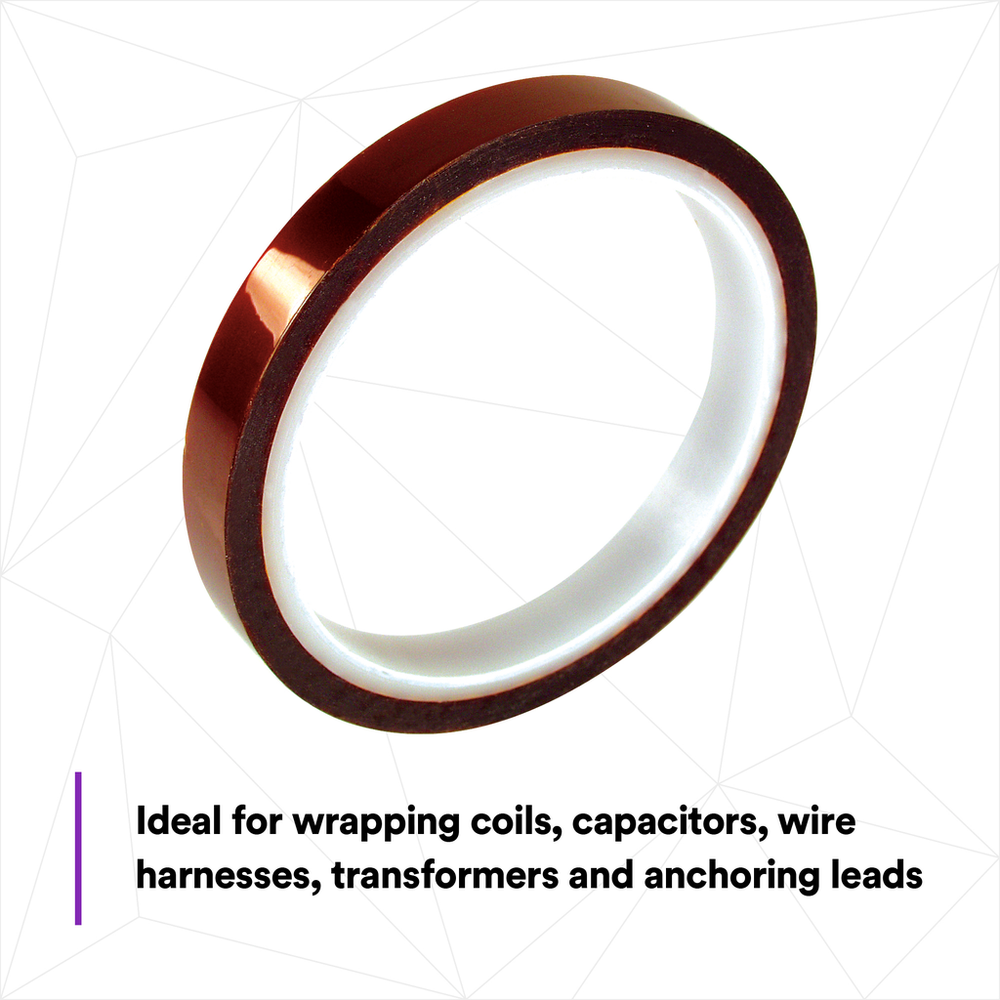

3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of -40°C to 155°C (-40 to 311 °F) without the loss of electrical properties and tensile strength.

Features

  • Withstands a temperature rating of -40°C to 155°C (-40°F to 311°F)
  • UL Listed and RoHS Compliant
  • Designed for anchoring leads and terminal boards
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Flame-retardant and has polyimide backing

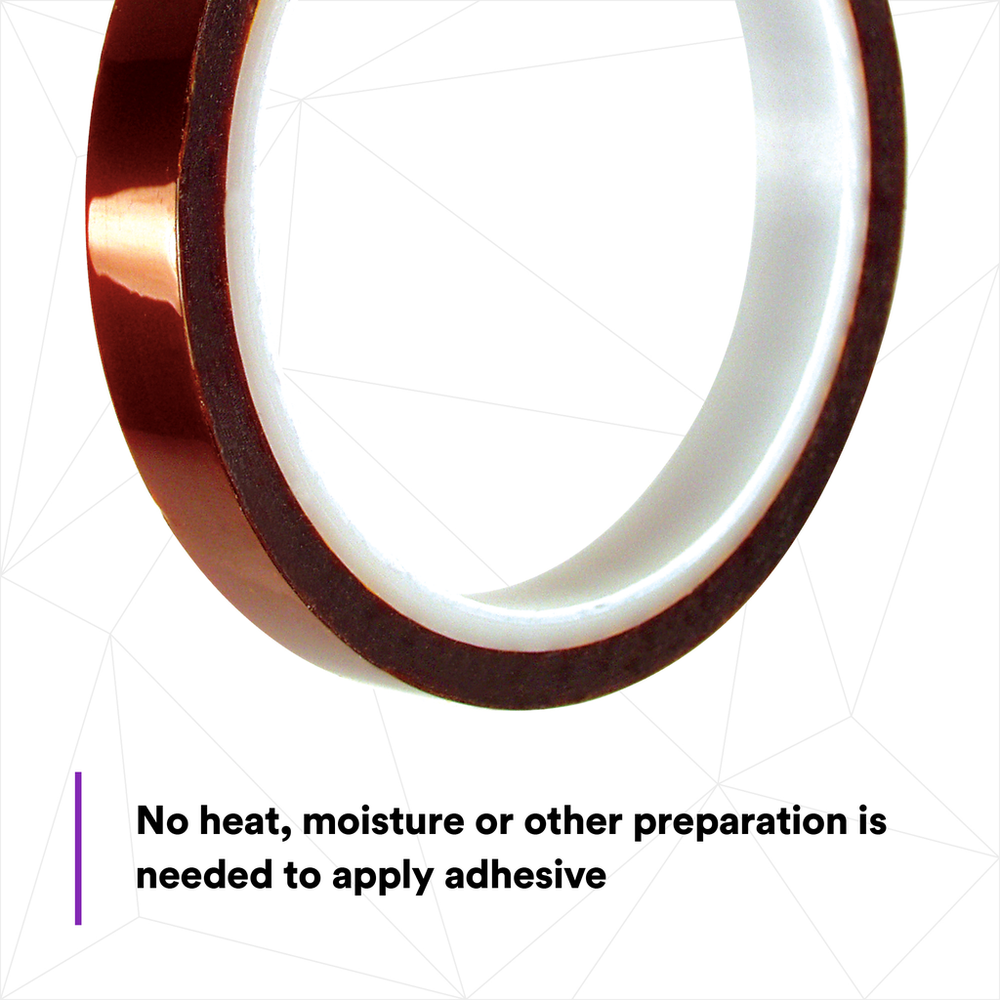

  • Highly conformable with a pressure-sensitive, acrylic adhesive

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Tensile Strength (Metric)53.0
Product MarketsElectrical Equipment Manufacturing
Maximum Operating Temperature (Celsius)155.0
Adhesive TypeAcrylic
Specifications MetRoHS 2011/65/EU
Overall Width (Metric) UOMmm
Product ColorAmber
Tensile Strength (Metric) UOMN/cm
Dielectric Strength7500.0
Elongation at Break55%
Maximum Operating Temperature (Fahrenheit)311.0
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)3.2
Total Tape Thickness without Liner (Metric)0.081
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Electrolytic Corrosion Factor1.0
Overall Width (Imperial)1.0
Dielectric Strength UOMV
Overall Width (Metric)25.4
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)144.0
Adhesive MaterialAcrylic
Shelf Life UOMYear
ApplicationInsulation
Backing (Carrier) MaterialPolyimide Film
