3M Products & Supplies

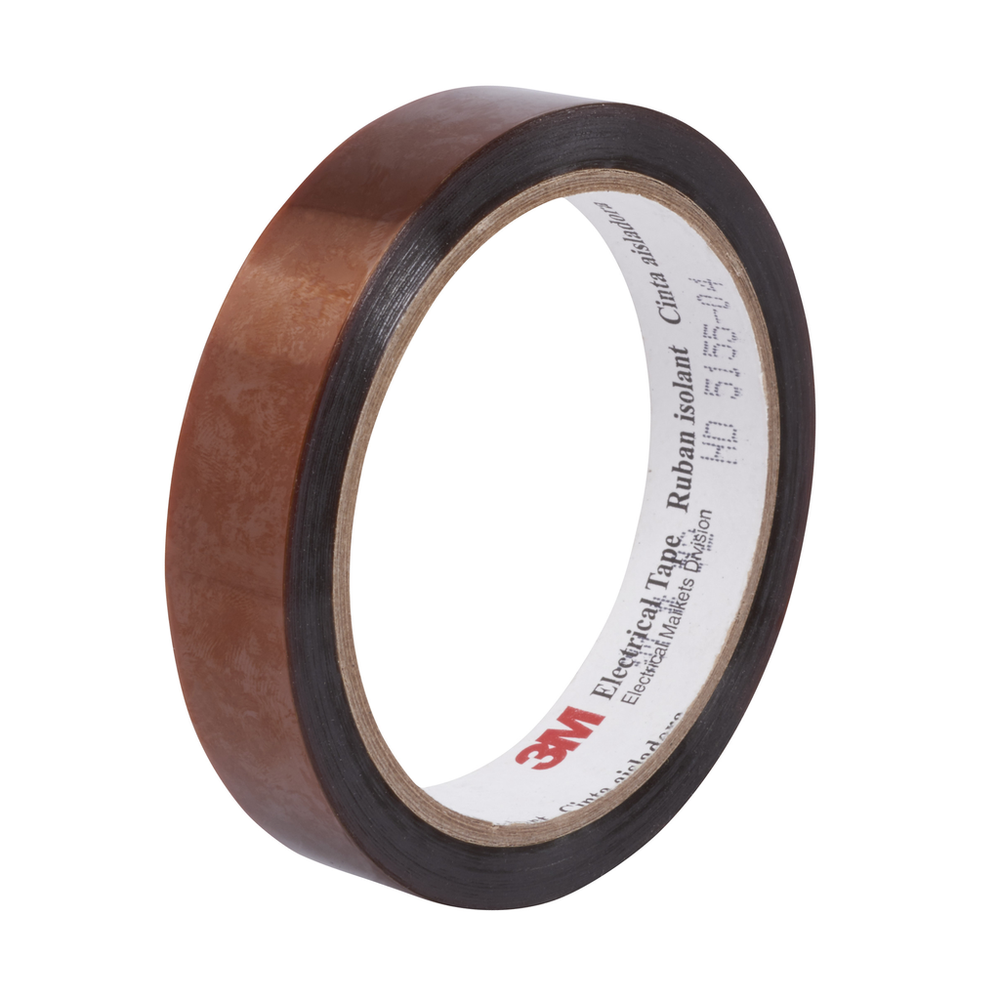

3M™ Polyimide Film Electrical Tape 92, 1 3/4 in X 36 yds, Mini-Case, 3-in plastic core - 7010304028

Sold As: 6-Pack
SKU: 7010304028
MPN: 7010304028
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138966362
3M ID: 80611028335
5 Digit UPC: 96636
$1,017.15 ($169.53 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • Highly conformable with a pressure-sensitive, silicone adhesive
  • UL Listed and RoHS Compliant
  • Designed for anchoring leads and terminal boards
  • Flame-retardant and has polyamide backing
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Withstands a temperature rating of 0°C to 180°C
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Maximum Operating Temperature (Celsius)180.0
Tensile Strength (Metric)53.0
ApplicationInsulation
Total Tape Thickness without Liner (Metric)0.07
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)-40.0
Maximum Operating Temperature (Fahrenheit)356.0
Specifications MetRoHS 2011/65/EU, UL Recognized
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Adhesive MaterialThermosetting Silicone
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Insulation Resistance1 x 10^6 megohms
Tensile Strength (Metric) UOMN/cm
Overall Width (Imperial)1.75
Adhesive TypeSilicone
Total Tape Thickness without Liner (Imperial)2.75
Backing (Carrier) MaterialPolyimide Film
Product ColorAmber
Elongation at Break40%
Overall Length (Imperial) UOMyd
Overall Length (Metric)33.0
Product MarketsElectrical Equipment Manufacturing
Overall Width (Metric)44.45
Overall Width (Metric) UOMmm
Dielectric Strength7500.0
Maximum Operating Temperature (Celsius) UOMDegree
Electrolytic Corrosion Factor1.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength UOMV
Shelf Life UOMYear
