3M Products & Supplies

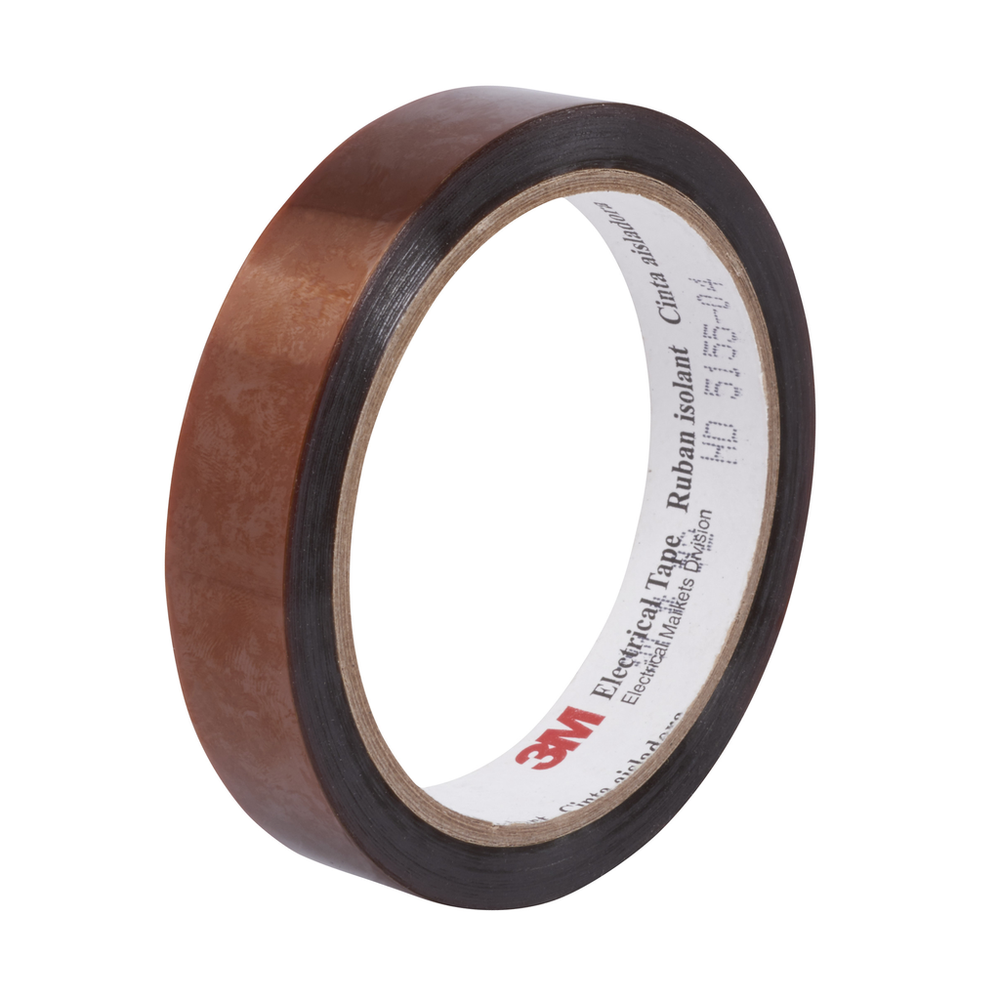

3M™ Polyimide Film Electrical Tape 92, 3 in x 36 yd, 3-in plastic core, Mini-Case - 7010348245

Sold As: 5-Pack
SKU: 7010348245
MPN: 7010348245
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138517311
3M ID: 80100613944
5 Digit UPC: 51731
$1,250.80 ($250.16 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Withstands a temperature rating of 0°C to 180°C
  • UL Listed and RoHS Compliant
  • Designed for anchoring leads and terminal boards
  • Highly conformable with a pressure-sensitive, silicone adhesive
  • Flame-retardant and has polyamide backing
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Minimum Operating Temperature (Celsius) UOMDegree
ApplicationInsulation
Product MarketsElectrical Equipment Manufacturing
Maximum Operating Temperature (Celsius)180.0
Total Tape Thickness without Liner (Metric)0.07
Shelf Life UOMYear
Minimum Operating Temperature (Celsius)-40.0
Elongation at Break40%
Specifications MetRoHS 2011/65/EU, UL Recognized
Adhesive TypeSilicone
Total Tape Thickness without Liner (Imperial)2.75
Adhesive MaterialThermosetting Silicone
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialPolyimide Film
Tensile Strength (Metric) UOMN/cm
Dielectric Strength7500.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)356.0
Overall Length (Imperial) UOMyd
Overall Length (Imperial)36.0
Insulation Resistance1 x 10^6 megohms
Product ColorAmber
Overall Width (Imperial)3.0
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)33.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)76.2
Dielectric Strength UOMV
Tensile Strength (Metric)53.0
Overall Length (Metric) UOMm
Electrolytic Corrosion Factor1.0
