3M Products & Supplies

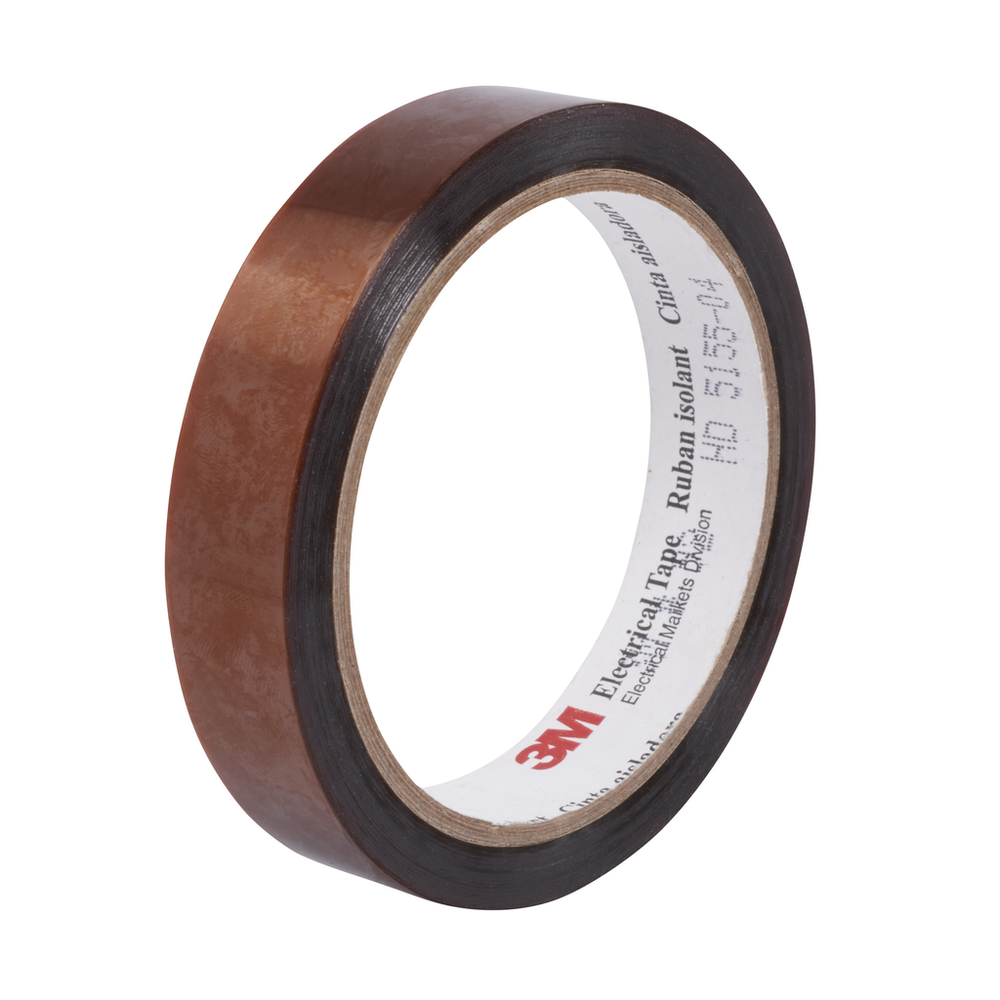

3M™ Polyimide Film Electrical Tape 92, 2 in X 36 yds Mini-Case 3-in plastic core, - 7000132701

Sold As: 5-Pack
SKU: 7000132701
MPN: 7000132701
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138493431
3M ID: 80610879324
5 Digit UPC: 49343
$887.93 ($177.59 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • UL Listed and RoHS Compliant
  • Withstands a temperature rating of 0°C to 180°C
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Highly conformable with a pressure-sensitive, silicone adhesive
  • Designed for anchoring leads and terminal boards
  • Flame-retardant and has polyamide backing
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Adhesive TypeSilicone
ApplicationInsulation
Overall Width (Metric)50.8
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial) UOMyd
Tensile Strength (Metric) UOMN/cm
Total Tape Thickness without Liner (Metric)0.07
Tensile Strength (Metric)53.0
Adhesive MaterialThermosetting Silicone
Electrolytic Corrosion Factor1.0
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Dielectric Strength7500.0
Elongation at Break40%
Dielectric Strength UOMV
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Product ColorAmber
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
Product MarketsElectrical Equipment Manufacturing
Insulation Resistance1 x 10^6 megohms
Maximum Operating Temperature (Fahrenheit)356.0
Overall Width (Imperial)2.0
Backing (Carrier) MaterialPolyimide Film
Minimum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMYear
Specifications MetRoHS 2011/65/EU, UL Recognized
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)2.75
Overall Length (Metric)33.0
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)180.0
