3M Products & Supplies

3M™ Polyimide Film Electrical Tape 92, Amber, Silicone Adhesive, 1 mil film, 12 in x 36 yd logroll, 3" plastic core, 1 Roll/Case - 7000006155

SKU: 7000006155
MPN: 7000006155
For an accurate lead time please contact us
UPC: 00051135895139
3M ID: 80611028756
5 Digit UPC: 89513
$818.56 each
Hurry up! Current stock:

Product Description

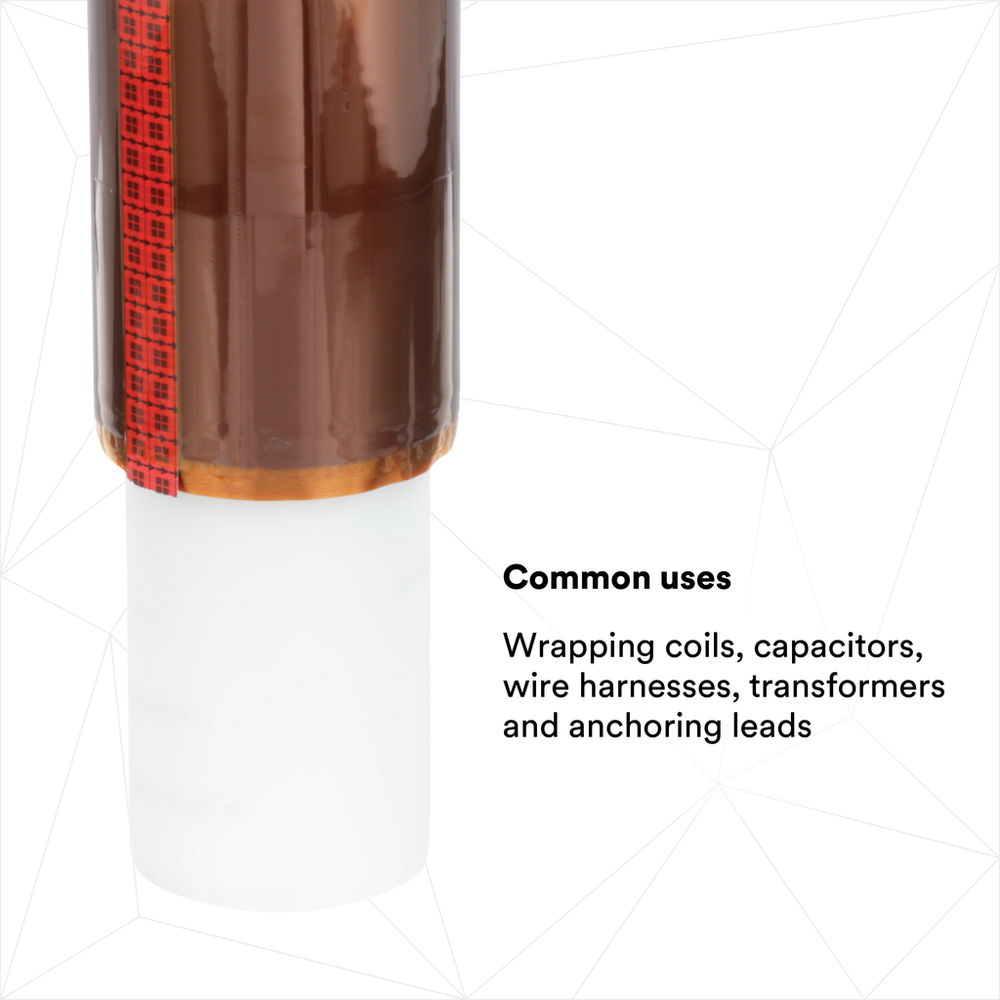

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • Designed for anchoring leads and terminal boards
  • Highly conformable with a pressure-sensitive, silicone adhesive
  • Flame-retardant and has polyamide backing
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Withstands a temperature rating of 0°C to 180°C
  • UL Listed and RoHS Compliant
Spec Sheet



Downloads

Specifications

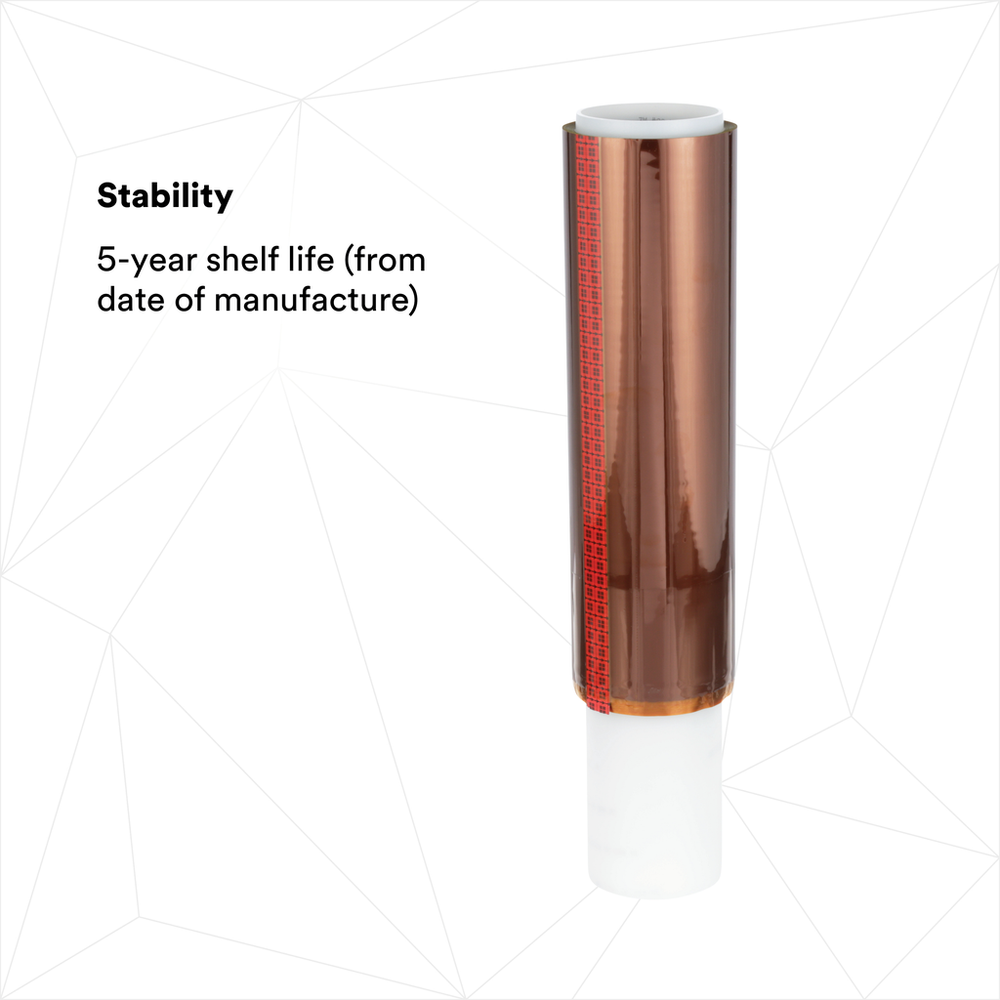

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialPolyimide Film
ApplicationInsulation
Product ColorAmber
Overall Length (Metric)33.0
Overall Width (Imperial) UOMin
Product MarketsElectrical Equipment Manufacturing
Insulation Resistance1 x 10^6 megohms
Minimum Operating Temperature (Celsius)-40.0
Dielectric Strength7500.0
Electrolytic Corrosion Factor1.0
Tensile Strength (Metric) UOMN/cm
Dielectric Strength UOMV
Maximum Operating Temperature (Celsius)180.0
Total Tape Thickness without Liner (Imperial)2.75
Total Tape Thickness without Liner (Metric)0.07
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)12.0
Maximum Operating Temperature (Fahrenheit)356.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeSilicone
Overall Width (Metric) UOMmm
Adhesive MaterialThermosetting Silicone
Tensile Strength (Metric)53.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)304.8
Elongation at Break40%

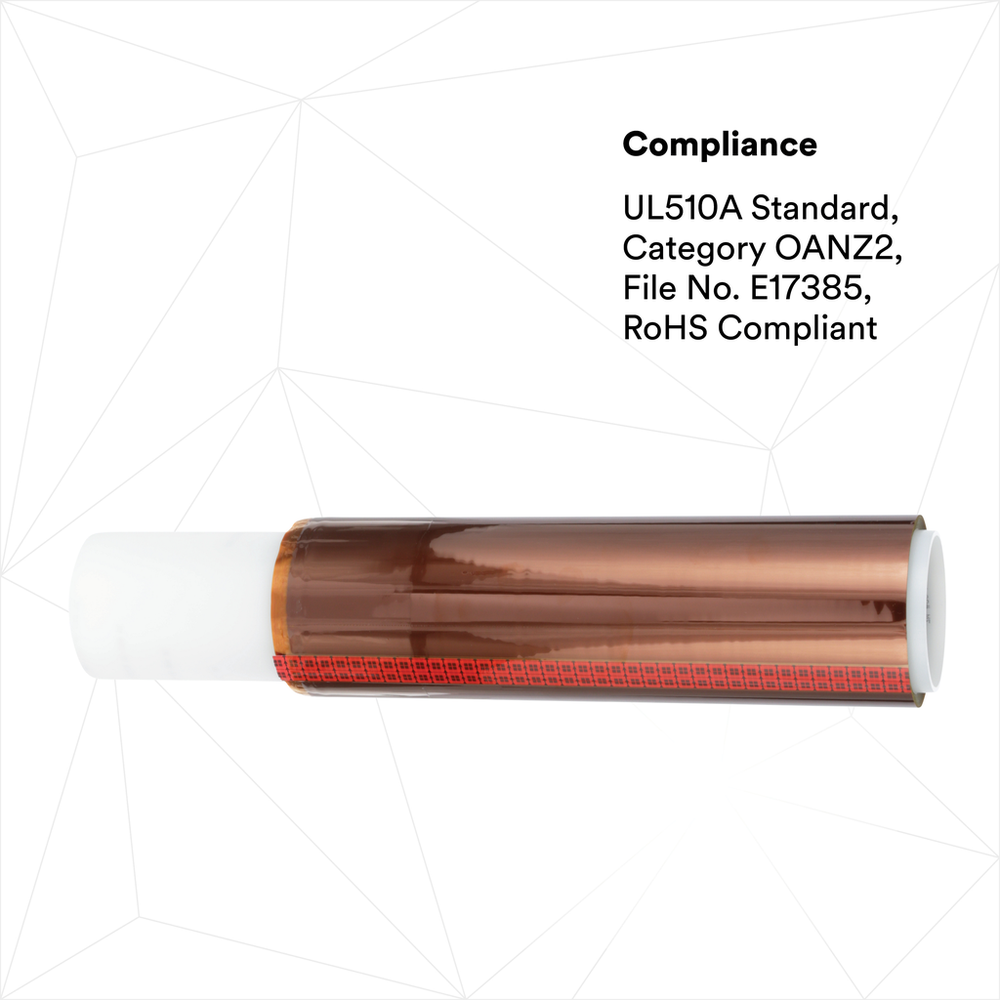

Specifications MetRoHS 2011/65/EU, UL Recognized
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)36.0
