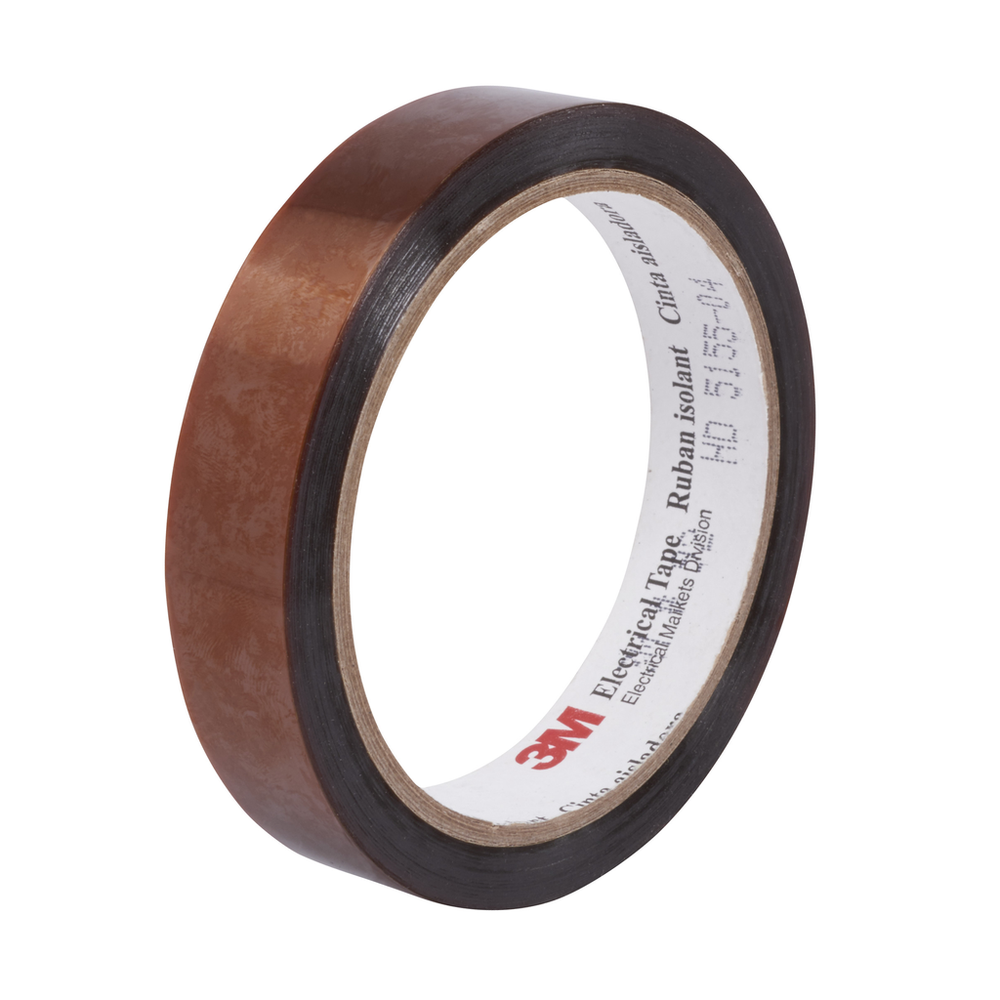

3M™ Polyimide Film Electrical Tape 92, Amber, Silicone Adhesive, 1-mil film, 3/8 in x 36 yds (9,52mm x 33m), 24/Case - 7010395787

Sold As: 24-Pack
SKU: 7010395787
MPN: 7010395787
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007275374
3M ID: 80018001166
5 Digit UPC: 27537
$757.87 ($31.58 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • Designed for anchoring leads and terminal boards
  • Withstands a temperature rating of 0°C to 180°C
  • UL Listed and RoHS Compliant
  • Flame-retardant and has polyamide backing
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Highly conformable with a pressure-sensitive, silicone adhesive
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Dielectric Strength7500.0
Dielectric Strength UOMV
Overall Width (Metric)9.525
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Specifications MetRoHS 2011/65/EU, UL Recognized
Maximum Operating Temperature (Celsius)180.0
Minimum Operating Temperature (Celsius) UOMDegree
Insulation Resistance1 x 10^6 megohms
Total Tape Thickness without Liner (Imperial)2.75
Adhesive TypeSilicone
Overall Length (Imperial) UOMyd
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric)0.07
Tensile Strength (Metric)53.0
Total Tape Thickness without Liner (Metric) UOMmm
Elongation at Break40%
Overall Length (Imperial)36.0
Electrolytic Corrosion Factor1
Overall Length (Metric)33.0
Product ColorAmber
Product MarketsElectrical Equipment Manufacturing
Tensile Strength (Metric) UOMN/cm
Overall Width (Imperial) UOMin
Adhesive MaterialThermosetting Silicone
ApplicationInsulation
Backing (Carrier) MaterialPolyimide Film
Overall Width (Imperial)0.375
Maximum Operating Temperature (Fahrenheit)356.0
