3M Products & Supplies

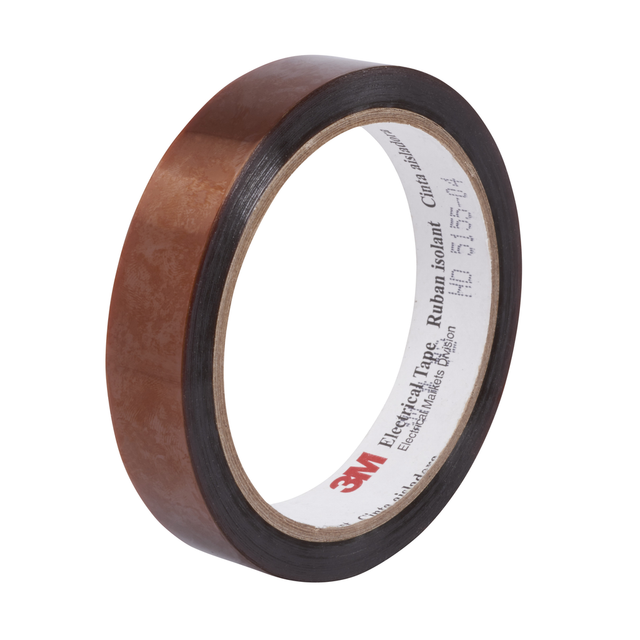

3M™ Polyimide Film Electrical Tape 92, Thermosetting Acrylic Adhesive, 12.5 in x 36 yd (38.1 cm x 34.8 m), logroll, 1 Roll/Case - 7010398889

SKU: 7010398889
MPN: 7010398889
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138508982
3M ID: 80610894711
5 Digit UPC: 50898
$844.46 each
Hurry up! Current stock:

Product Description

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • Withstands a temperature rating of 0°C to 180°C
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Flame-retardant and has polyamide backing
  • UL Listed and RoHS Compliant
  • Highly conformable with a pressure-sensitive, silicone adhesive
  • Designed for anchoring leads and terminal boards
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Elongation at Break40%
Shelf Life UOMYear
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.07
Adhesive MaterialThermosetting Silicone
Overall Width (Imperial)12.5
Maximum Operating Temperature (Celsius)180.0
Dielectric Strength7500.0
Tensile Strength (Metric) UOMN/cm
Electrolytic Corrosion Factor1.0
Total Tape Thickness without Liner (Imperial) UOMmil
Insulation Resistance1 x 10^6 megohms
Total Tape Thickness without Liner (Imperial)2.75
Specifications MetRoHS 2011/65/EU, UL Recognized
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)33.0
Minimum Operating Temperature (Celsius)-40.0
Product ColorAmber
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialPolyimide Film
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric)53.0
Product MarketsElectrical Equipment Manufacturing
Overall Width (Metric)317.5
Dielectric Strength UOMV
Maximum Operating Temperature (Fahrenheit)356.0
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
ApplicationInsulation
Adhesive TypeSilicone
