3M Products & Supplies

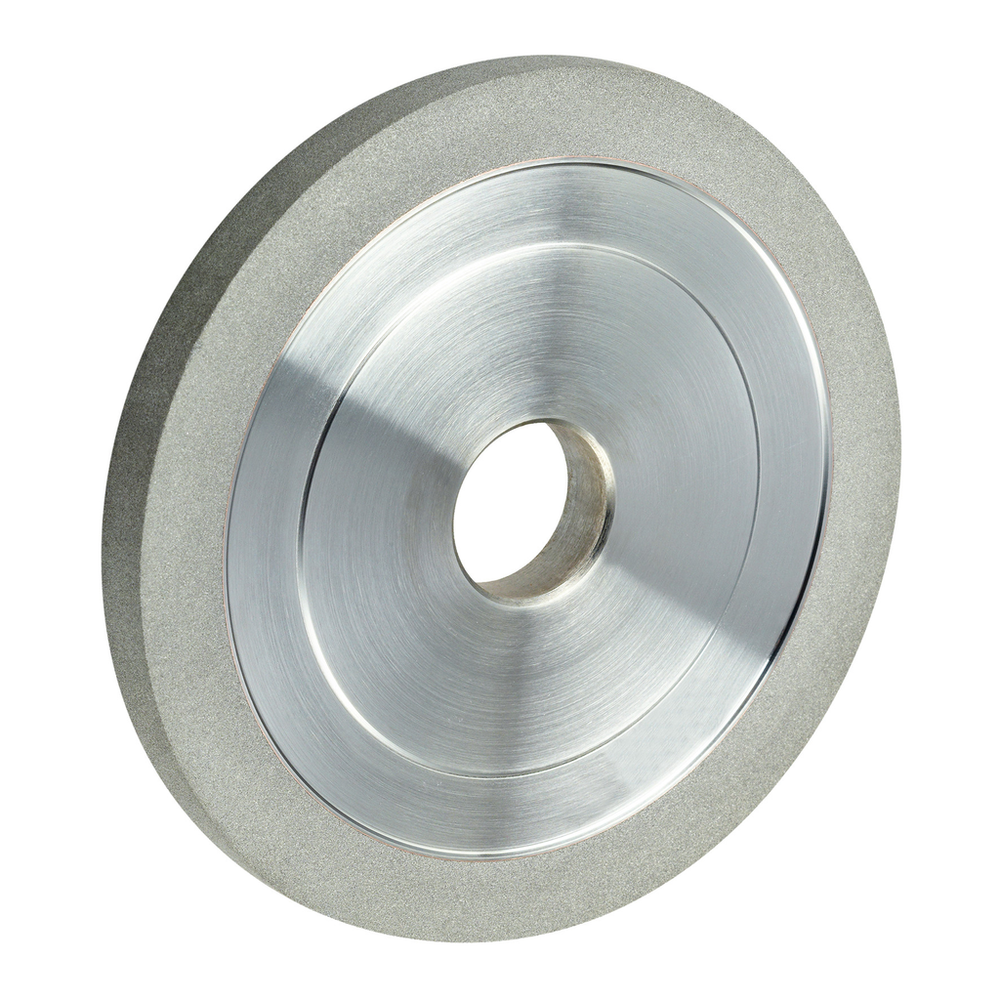

3M™ Polyimide Hybrid Bond Diamond Wheels and Tools, 11V9, 3-3/4X1-1/2X1-1/4, X=1/8 D220 686HN, U=3/8 - MMMPBDW41192 - 7010495759

SKU: 7010495759
MPN: 7010495759
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060000359
3M ID: 65500400273
5 Digit UPC: 35
$496.44 each
Hurry up! Current stock:

Product Description

3M™ Diamond Wheel 686HN is a special hybrid bond diamond wheel used for grinding primary and secondary relief angles on round tools made of tungsten carbide. This highly engineered wheel offers the excellent form retention and long wheel life which is ideal for long production runs where tighter control on tolerances are required.

Features

  • Used for grinding on round tools
  • Hybrid bond system offers excellent form retention and wheel stability
  • Diamond mineral for use when grinding Tungsten Carbide
  • Arbor holes are made to customer specifications, so you get exactly the size you need
  • Ideal for long production runs and where tight tolerances are required

Downloads

Specifications

Country of OriginUnited States
Abrasive MaterialDiamond
Overall Thickness (Imperial) UOMin
Center Hole Diameter (Metric)31.75
Bond TypePolyimide
Overall Thickness (Metric)38.1
Overall Thickness (Metric) UOMmm
Center Hole Diameter (Metric) UOMmm
Overall Diameter (Imperial) UOMin
Overall Diameter (Metric) UOMmm
Overall Diameter (Metric)95.25
Center Hole Diameter (Imperial) UOMin
Center Hole Diameter (Imperial)1.25
Overall Thickness (Imperial)1.5
IndustriesCutting Tool Manufacturing, Precision Grinding & Finishing
Overall Diameter (Imperial)3.75
Product FormWheel
