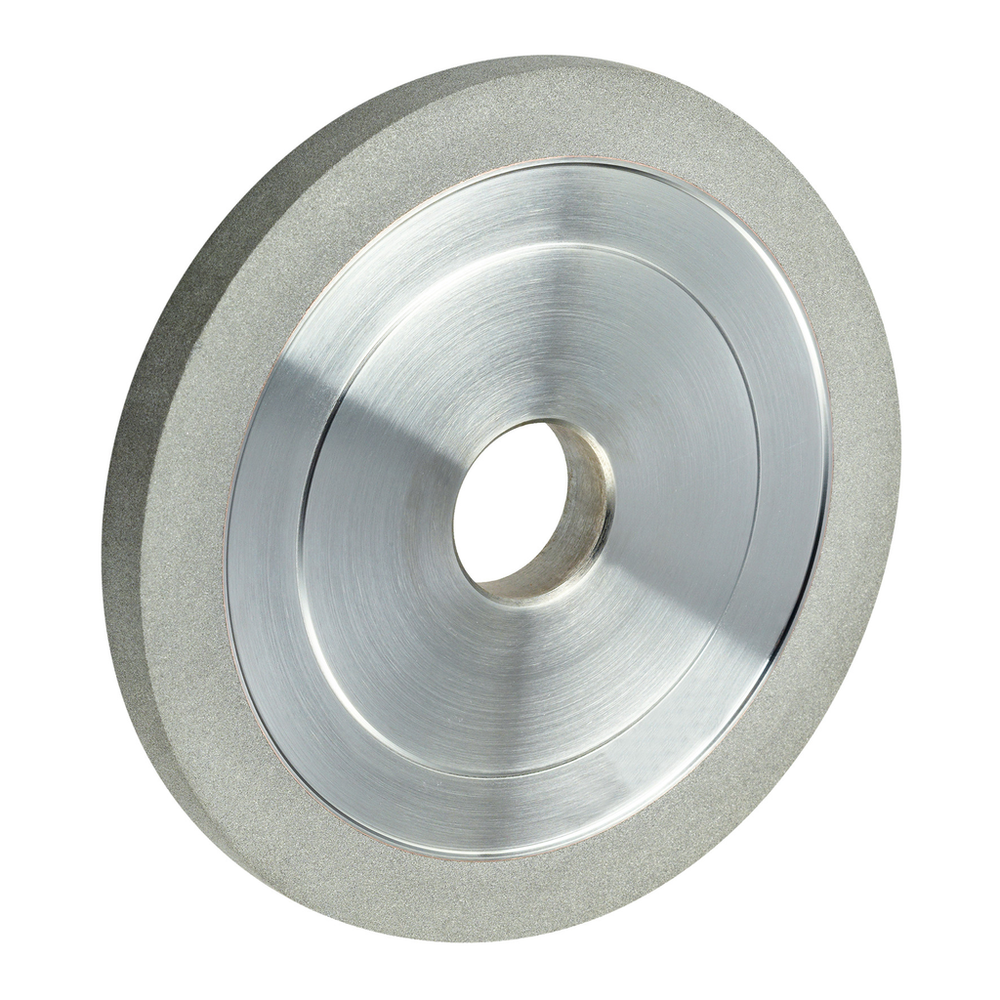

3M™ Polyimide Hybrid Bond Diamond Wheels and Tools, 11V9, 3-3/4X1-1/2X1-1/4, X=1/8 D400 686HN, U=3/8 - MMMPBDW41201 - 7010495771

SKU: 7010495771
MPN: 7010495771
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060000472
3M ID: 65500400398
5 Digit UPC: 47
$496.44 each
Hurry up! Current stock:

Product Description

3M™ Diamond Wheel 686HN is a special hybrid bond diamond wheel used for grinding primary and secondary relief angles on round tools made of tungsten carbide. This highly engineered wheel offers the excellent form retention and long wheel life which is ideal for long production runs where tighter control on tolerances are required.

Features

  • Ideal for long production runs and where tight tolerances are required
  • Used for grinding on round tools
  • Hybrid bond system offers excellent form retention and wheel stability
  • Arbor holes are made to customer specifications, so you get exactly the size you need
  • Diamond mineral for use when grinding Tungsten Carbide

Downloads

Specifications

Country of OriginUnited States
Abrasive MaterialDiamond
Overall Diameter (Metric)95.25
Center Hole Diameter (Metric)31.75
Overall Thickness (Metric)38.1
Center Hole Diameter (Metric) UOMmm
Product FormWheel
Overall Thickness (Imperial)1.5
Overall Thickness (Metric) UOMmm
Center Hole Diameter (Imperial)1.25
Overall Diameter (Metric) UOMmm
Overall Thickness (Imperial) UOMin
Overall Diameter (Imperial) UOMin
Center Hole Diameter (Imperial) UOMin
Overall Diameter (Imperial)3.75
IndustriesCutting Tool Manufacturing, Precision Grinding & Finishing
Bond TypePolyimide
