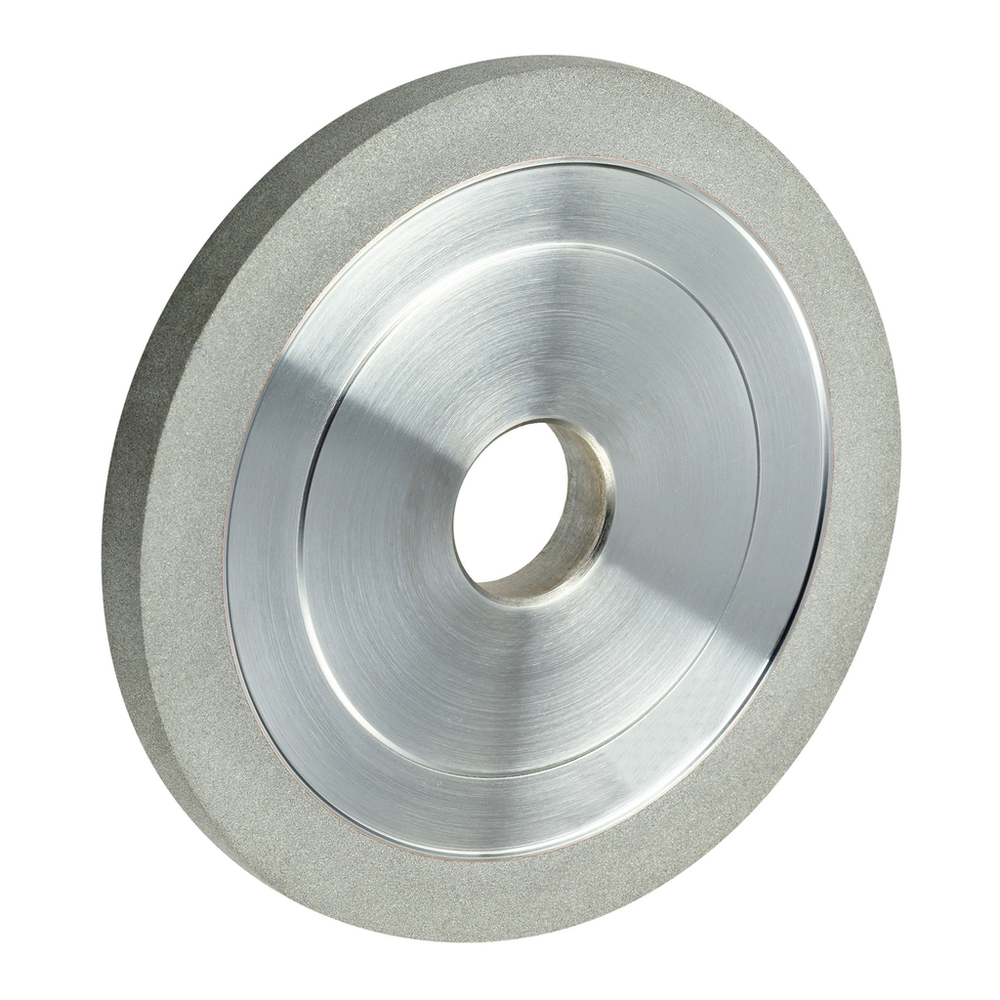

3M™ Polyimide Hybrid Bond Diamond Wheels and Tools, 11V9, 3-3/4X1-1/2X1-1/4, X=1/8 D320 686HN, U=3/8 - MMMPBDW50380 - 7010496671

SKU: 7010496671
MPN: 7010496671
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060011461
3M ID: 65500411387
5 Digit UPC: 1146
$496.44 each
Hurry up! Current stock:

Product Description

3M™ Diamond Wheel 686HN is a special hybrid bond diamond wheel used for grinding primary and secondary relief angles on round tools made of tungsten carbide. This highly engineered wheel offers the excellent form retention and long wheel life which is ideal for long production runs where tighter control on tolerances are required.

Features

  • Used for grinding on round tools
  • Diamond mineral for use when grinding Tungsten Carbide
  • Hybrid bond system offers excellent form retention and wheel stability
  • Ideal for long production runs and where tight tolerances are required
  • Arbor holes are made to customer specifications, so you get exactly the size you need

Downloads

Specifications

Country of OriginUnited States
Overall Diameter (Metric) UOMmm
Bond TypePolyimide
Center Hole Diameter (Metric) UOMmm
IndustriesCutting Tool Manufacturing, Precision Grinding & Finishing
Center Hole Diameter (Metric)31.75
Product FormWheel
Overall Diameter (Metric)95.25
Overall Thickness (Imperial)1.5
Overall Thickness (Metric) UOMmm
Overall Diameter (Imperial) UOMin
Center Hole Diameter (Imperial)1.25
Abrasive MaterialDiamond
Overall Thickness (Metric)38.1
Overall Thickness (Imperial) UOMin
Center Hole Diameter (Imperial) UOMin
Overall Diameter (Imperial)3.75
