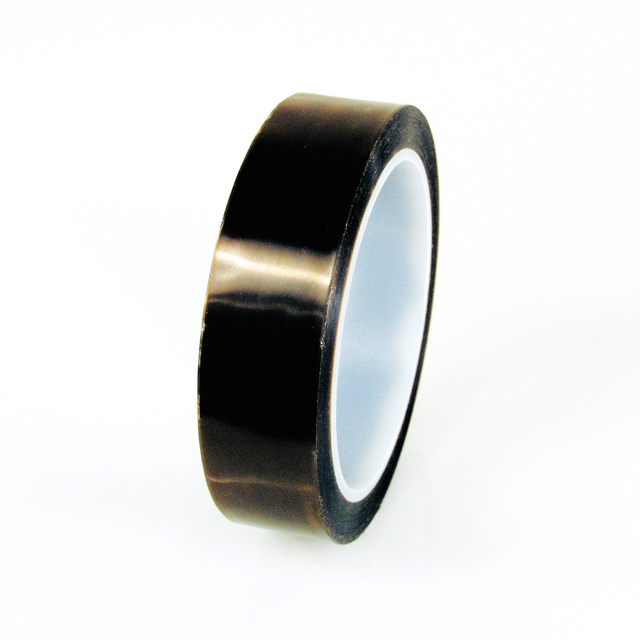

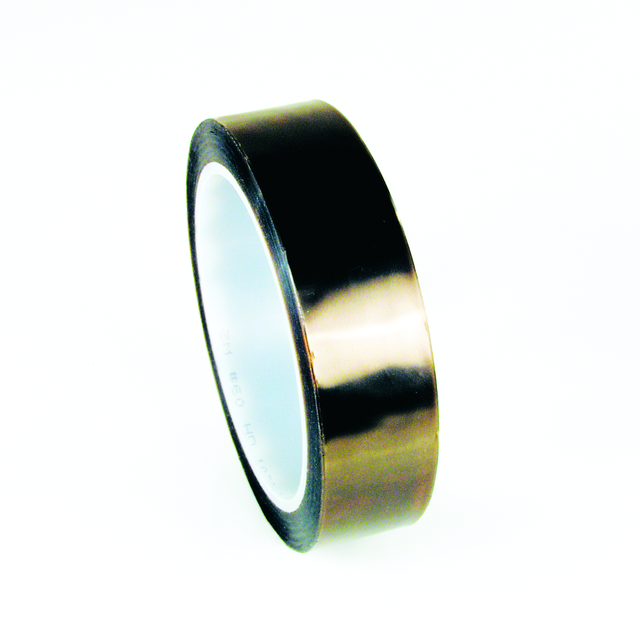

3M™ PTFE Film Electrical Tape 61, 14 in x 36 yd (35,6 cm x 33 m), Log roll Untrimmed, 1 Roll/Case - 7000005803

SKU: 7000005803
MPN: 7000005803
For an accurate lead time please contact us
UPC: 00054007083016
3M ID: 80008006217
5 Digit UPC: 8301
$2,833.02 each
Hurry up! Current stock:

Product Description

3M™ PTFE Film Electrical Tape 61 is a PTFE film backed electrical tape. This flame retardant tape is suitable for use on high temperature coils, wire harnesses and capacitors where high dielectric and breaking strength are required. This tape is 600V rated and withstands a temperature range of 32 to 356 °F (0 to 180 °C).

Features

  • PTFE film backing for use in applications that require minimum shrinkage and stability
  • Resistant to chemicals as well as high arcs
  • Aggressive rubber resin adhesive
  • Suitable for use on high-temperature coils, wire harnesses and capacitors
  • Withstands a temperature range of 32 to 356 °F (0 to 180 °C)
  • Flame-retardant

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)25.4
Adhesive TypeSilicone
Tensile Strength (Metric)79.0
Overall Width (Imperial)1.0
Tensile Strength (Metric) UOMN/cm
Total Tape Thickness without Liner (Metric)0.127
Total Tape Thickness without Liner (Imperial)5.0
Backing (Carrier) MaterialPTFE Film
ApplicationInsulation
Shelf Life UOMYear
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)180.0
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit)356.0
Insulation Resistance>1 x 10^6 megohms
Dielectric Strength15000.0
Product MarketsElectrical Construction
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed
Elongation at Break300
Overall Width (Imperial) UOMin
Overall Length (Imperial)36.0
Backing (Carrier) Thickness (Metric)0.127
Backing (Carrier) Thickness (Metric) UOMmm
Product ColorTransparent Maroon
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Dielectric Strength UOMV
Electrolytic Corrosion Factor1.0
Overall Length (Metric)32.9
