3M Products & Supplies

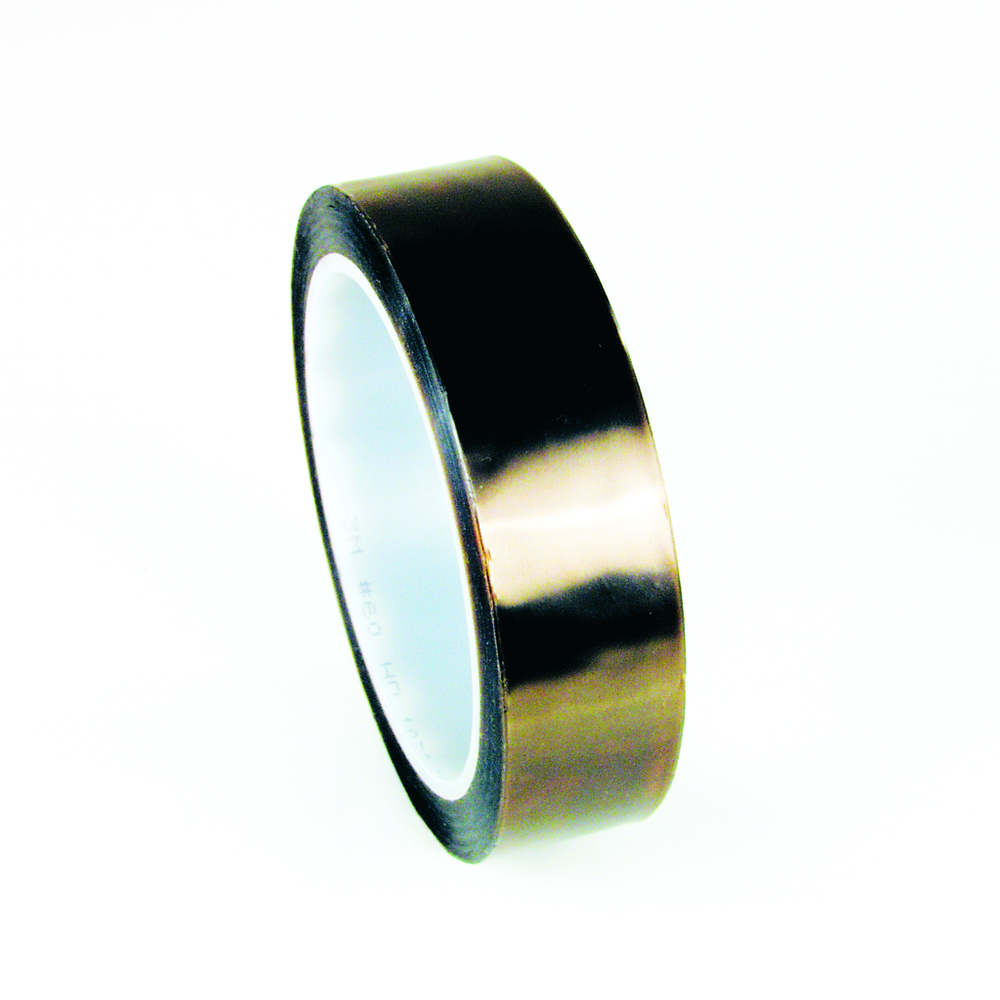

3M™ PTFE Film Electrical Tape 63, 14 in x 36 yd, 3 in core, Log Roll, 1 Roll/Case - 7000006113

SKU: 7000006113
MPN: 7000006113
Lead Time: 15 working days.
UPC: 051138469870
3M ID: 80610867261
5 Digit UPC: 46987
$1,721.41 each
Hurry up! Current stock:

Product Description

3M™ PTFE Film Electrical Tape 63 is a PTFE film backed slip resistant tape. This 600V rated tape is suitable for use on coils, capacitors and wire harnesses and withstands a temperature range of 32 to 311 °F (0 to 155 °C). This flame retardant tape has an acrylic adhesive that offers exceptional adherence and resists solvents.

Features

  • The conformable, PTFE-film backing resists temperature as well as chemicals
  • Excellent absorption of electrical insulating resins and varnishes
  • Acrylic Adhesive
  • UL Listed and RoHS 2011/65/EU Compliant

Specifications

Shelf Life5 Year
Total Tape Thickness without Liner (Imperial)3.5 mil
Maximum Operating Temperature (Fahrenheit)307 Degree Fahrenheit
UL 510Yes
Electrolytic Corrosion Factor1
Overall Length (Imperial)36 yd
Adhesive MaterialAcrylic
Overall Thickness (Metric)0.088 mm
Overall Length (Metric)33 m
Overall Width (Imperial)14 in
UL File NumberE17386
Adhesion to Steelen-CA: 3,5 N/cm - en-US: 3,5 N/cm - fr-CA: 3,5 N/cm
Color FamilyTransparent
Breaking Strength (Imperial)35 N/cm
Flame RetardantYes
Backing MaterialPTFE Film
Elongation at Break200%
Total Tape Thickness without Liner (Metric)0.089 mm
Total Thickness0.102 mm
Adhesive TypeAcrylic
Backing Thickness (Metric)0.0508 mm
UL ApprovalYes
Overall Thickness (Imperial)3.5 mil
Maximum Operating Temperature (Celsius)155 Degree Celsius
Overall Width (Metric)355 mm
Product ColorTranslucent
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation Resistance> 10^6 megohms
