3M Products & Supplies

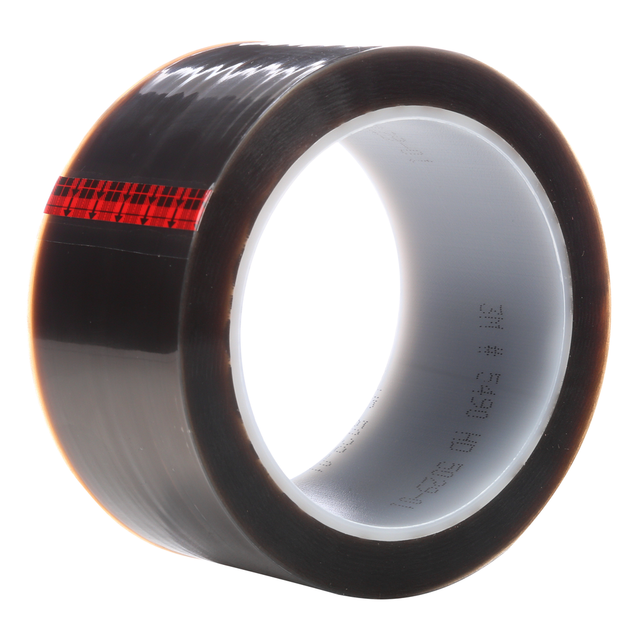

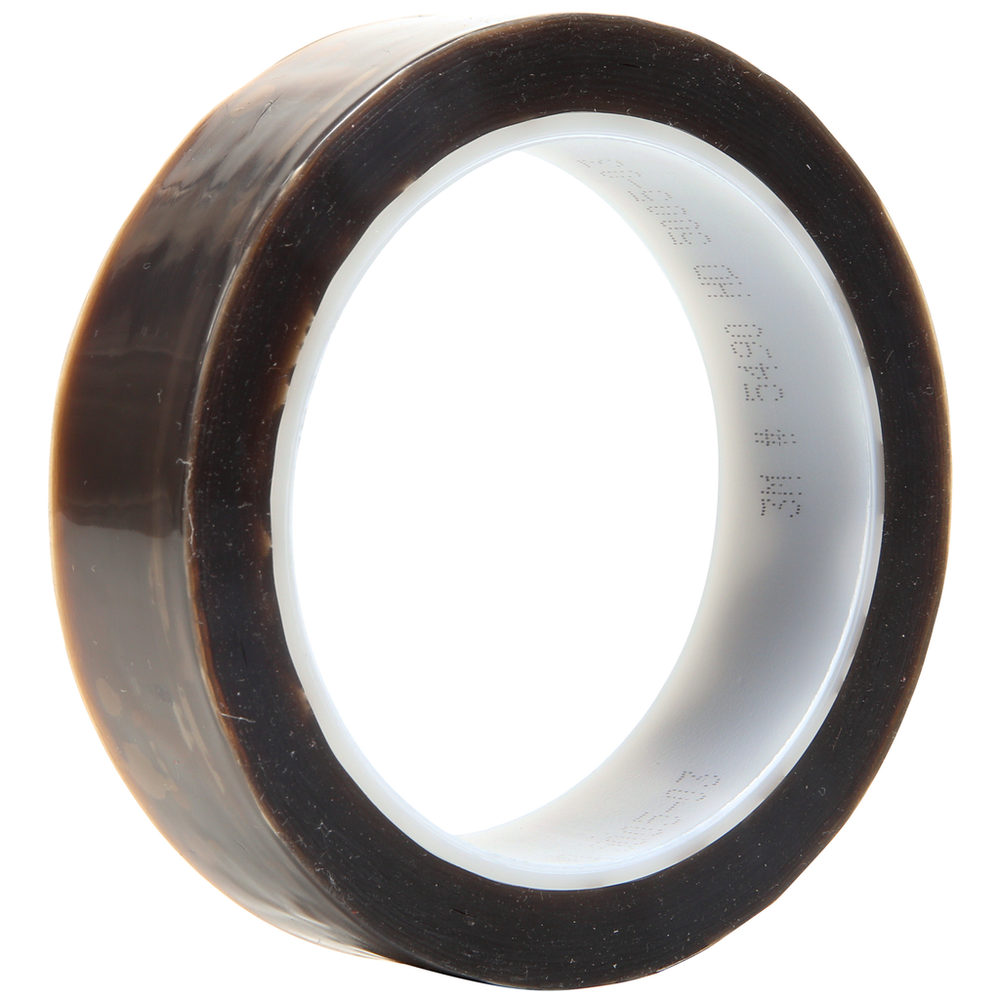

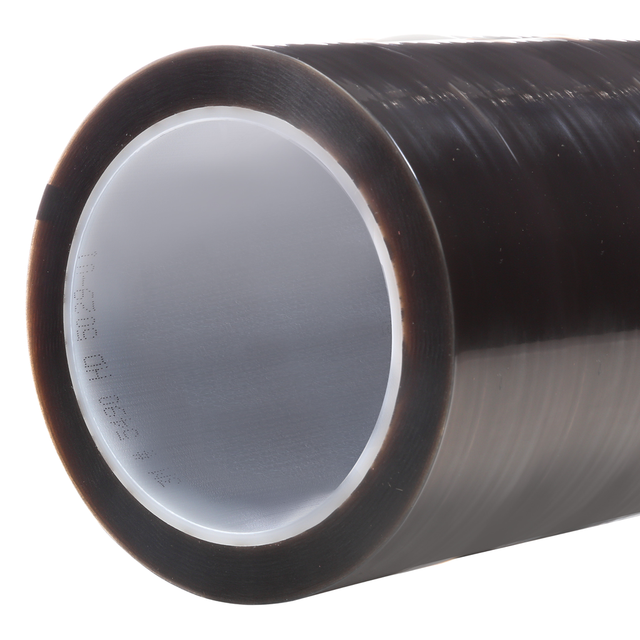

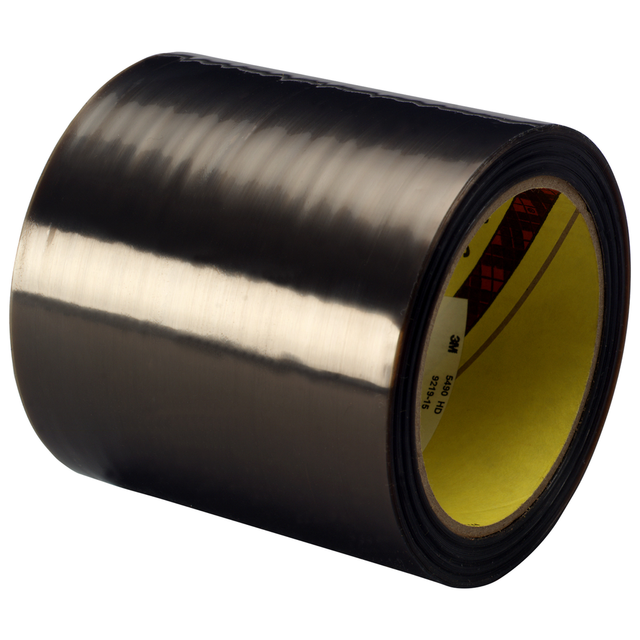

3M™ PTFE Film Tape 5490, Brown, 1 1/2 in x 36 yd, 3.7 mil, 6 rolls per case - 7000050119

Sold As: 18-Pack
SKU: 7000050119
MPN: 7000050119
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200072826
3M ID: 70016054218
5 Digit UPC: 7282
$4,211.19 ($233.95 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5490 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • Wide temperature range for performance on heated machinery and equipment
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • High strength and abrasion resistance ensures reliability and performance to reduce friction, rattle and machinery noise
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)3.7
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)3.8
Color NameBrown
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialExtruded PTFE
Adhesive TypeSilicone
Overall Length (Imperial)36.0
ApplicationVibration Damping
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)30.4
Units per Case6.0
Units per Case UOMRoll
Minimum Operating Temperature (Celsius)-54.0
Product ColorBrown
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)2.0
IndustriesAerospace
Backing (Carrier) Thickness (Metric)0.05
Tensile Strength (Imperial)22.0
Maximum Operating Temperature (Celsius)260.0
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-65.0
Tensile Strength (Imperial) UOMlb/in
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)1.5
Total Tape Thickness without Liner (Metric)0.09
Overall Width (Metric) UOMcm
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)500.0
Overall Length (Metric)32.9
Overall Length (Imperial) UOMyd
