3M Products & Supplies

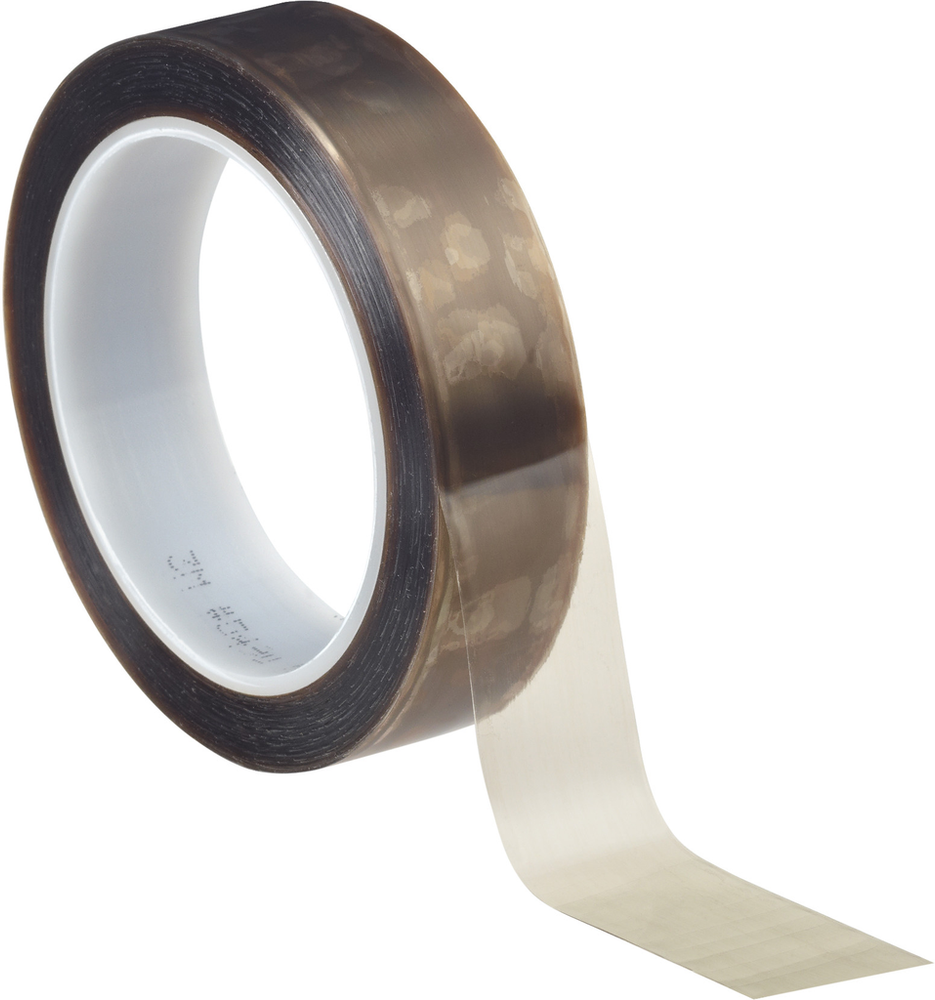

3M™ PTFE Film Tape 5490, Brown, 1 in x 11 yd, 3.7 mil, 42 Rolls/Case - 7100221606

Sold As: 42-Pack
SKU: 7100221606
MPN: 7100221606
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060406632
3M ID: 70007543757
5 Digit UPC: 40663
$2,001.59 ($47.66 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5490 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • High strength and abrasion resistance ensures reliability and performance to reduce friction, rattle and machinery noise
  • Wide temperature range for performance on heated machinery and equipment
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Excellent chemical resistance enables tape to withstand challenging applications
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)2.0
Tensile Strength (Imperial)22.0
ApplicationVibration Damping
Overall Width (Imperial)1.0
Overall Width (Metric) UOMmm
Overall Length (Imperial)11.0
Overall Length (Imperial) UOMyd
Tensile Strength (Metric)30.4
Product ColorBrown
Total Tape Thickness without Liner (Metric)0.0939
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)-54.0
Overall Width (Metric)25.4
Total Tape Thickness without Liner (Imperial)3.7
Maximum Operating Temperature (Celsius)260.0
Adhesive TypeSilicone
Maximum Operating Temperature (Celsius) UOMDegree
Color NameBrown
Maximum Operating Temperature (Fahrenheit)500.0
Overall Length (Metric)10.058
Minimum Operating Temperature (Fahrenheit)-65.0
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.05
