3M Products & Supplies

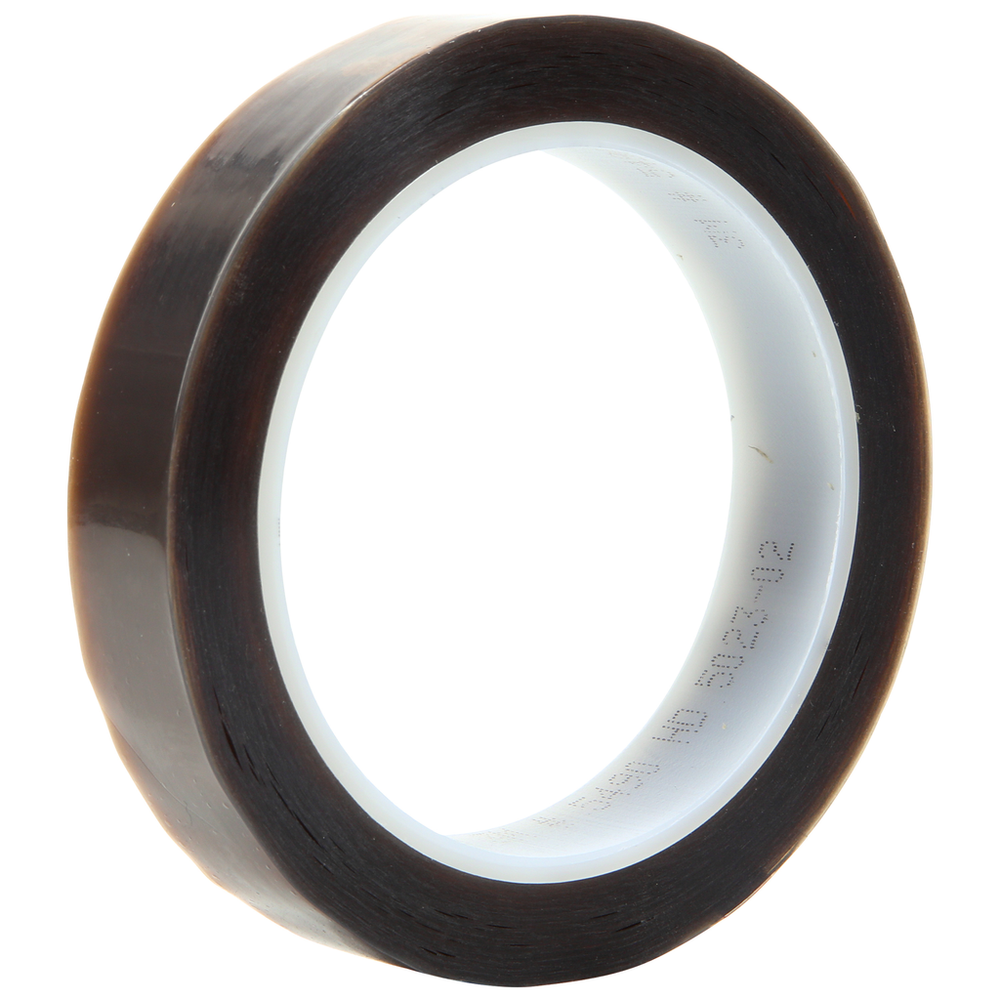

3M™ PTFE Film Tape 5490, Brown, 3/4 in x 36 yd, 3.7 mil, 12 Roll/Case - 7000050121

Sold As: 12-Pack
SKU: 7000050121
MPN: 7000050121
For an accurate lead time please contact us
UPC: 00021200058752
3M ID: 70016054242
5 Digit UPC: 5875
$1,473.61 ($122.80 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5490 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • Silicone adhesive provides clean removal from a variety of surfaces
  • High strength and abrasion resistance ensures reliability and performance to reduce friction, rattle and machinery noise
  • Wide temperature range for performance on heated machinery and equipment
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Excellent chemical resistance enables tape to withstand challenging applications
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
ApplicationVibration Damping
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)3.7
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric)30.4
Backing (Carrier) Thickness (Metric)0.05
Overall Width (Metric) UOMcm
Overall Length (Metric)32.9
Tensile Strength (Imperial)22.0
IndustriesAerospace
Overall Length (Metric) UOMm
Tensile Strength (Metric) UOMN/100mm
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit)500.0
Product ColorBrown
Adhesive TypeSilicone
Minimum Operating Temperature (Celsius)-54.0
Minimum Operating Temperature (Fahrenheit)-65.0
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.09
Minimum Operating Temperature (Celsius) UOMDegree
Color NameBrown
Units per Case UOMRoll
Maximum Operating Temperature (Celsius)260.0
Backing (Carrier) MaterialExtruded PTFE
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)2.0
Overall Width (Imperial)0.8
Overall Width (Metric)1.9
Units per Case12.0
Overall Length (Imperial)36.0
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
