3M Products & Supplies

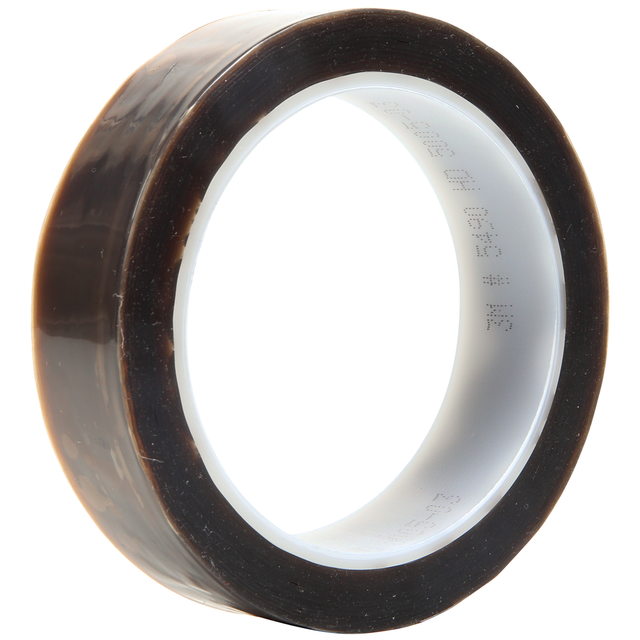

3M™ PTFE Film Tape 5490, Brown, 4 in x 36 yd, 3.7 mil, 3 Roll/Case - 7000048616

Sold As: 6-Pack
SKU: 7000048616
MPN: 7000048616
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200034329
3M ID: 70006162138
5 Digit UPC: 3432
$3,743.29 ($623.88 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5490 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • Excellent chemical resistance enables tape to withstand challenging applications
  • Wide temperature range for performance on heated machinery and equipment
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • High strength and abrasion resistance ensures reliability and performance to reduce friction, rattle and machinery noise
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
IndustriesAerospace
Units per Case UOMRoll
Adhesive TypeSilicone
Tensile Strength (Metric)30.4
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.094
Overall Width (Imperial) UOMin
Product ColorBrown
Backing (Carrier) Thickness (Imperial)2.0
Maximum Operating Temperature (Celsius)260.0
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
Overall Width (Imperial)4.0
Tensile Strength (Metric) UOMN/100mm
Color NameBrown
Backing (Carrier) Thickness (Imperial) UOMmil
Units per Case3.0
Backing (Carrier) Thickness (Metric)0.05
Tensile Strength (Imperial)22.0
Overall Length (Imperial) UOMyd
Overall Length (Metric)33.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialExtruded PTFE
ApplicationVibration Damping
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)3.7
Maximum Operating Temperature (Fahrenheit)500.0
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Width (Metric)101.6
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-54.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
