3M Products & Supplies

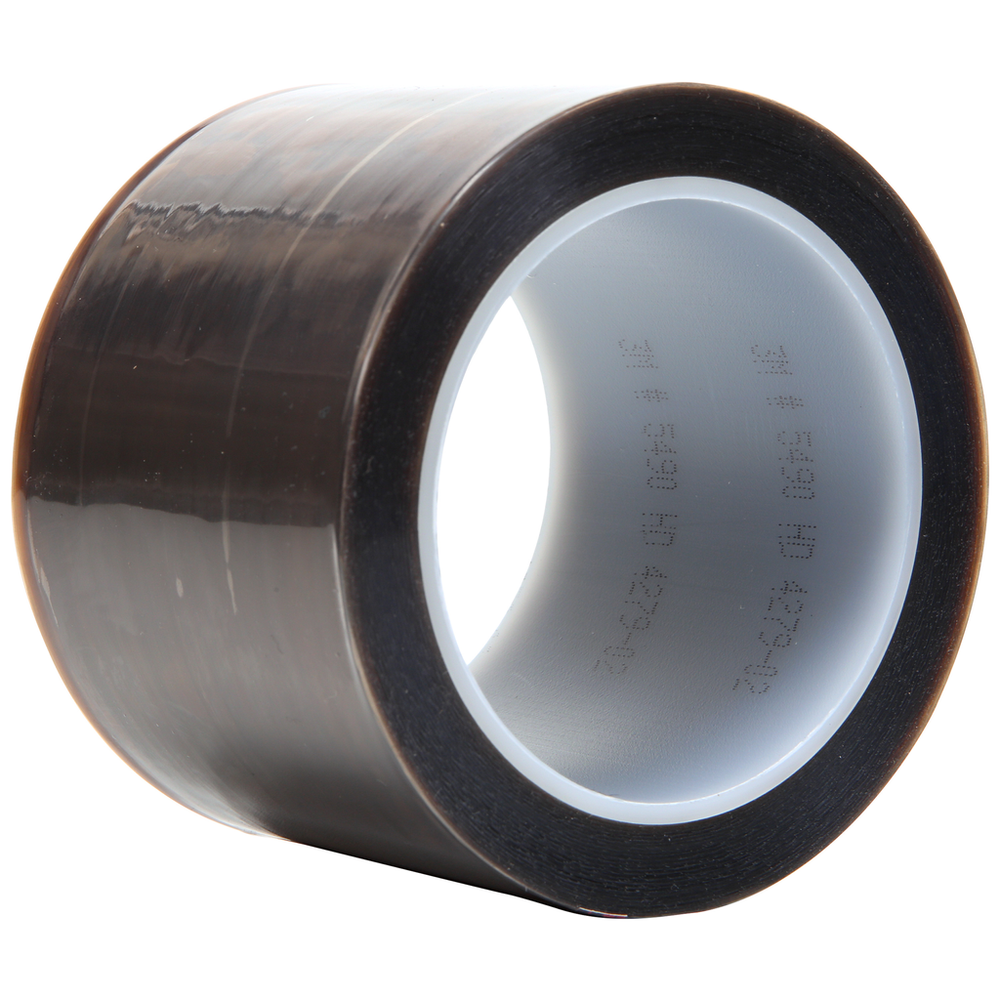

3M™ PTFE Film Tape 5490, Brown, 3 in x 36 yd, 3.7 mil, 3 Roll/Case - 7000029151

Sold As: 3-Pack
SKU: 7000029151
MPN: 7000029151
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200058769
3M ID: 70016054184
5 Digit UPC: 5876
$1,403.73 ($467.91 / Count)
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5490 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

Features

  • High strength and abrasion resistance ensures reliability and performance to reduce friction, rattle and machinery noise
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Wide temperature range for performance on heated machinery and equipment
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Excellent chemical resistance enables tape to withstand challenging applications
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Tensile Strength (Imperial)22.0
Minimum Operating Temperature (Celsius)-54.0
Units per Case UOMRoll
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Imperial)3.0
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)500.0
Overall Length (Imperial) UOMyd
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Imperial)2.0
Minimum Operating Temperature (Fahrenheit)-65.0
Maximum Operating Temperature (Celsius)260.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product ColorBrown
Tensile Strength (Metric)30.4
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case3.0
Overall Length (Imperial)36.0
Adhesive TypeSilicone
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialExtruded PTFE
Total Tape Thickness without Liner (Metric)0.094
Overall Length (Metric)32.91
Overall Width (Metric)76.2
Total Tape Thickness without Liner (Imperial)3.7
IndustriesAerospace
Color NameBrown
Overall Width (Metric) UOMmm
ApplicationVibration Damping
Backing (Carrier) Thickness (Metric)0.05
