3M Products & Supplies

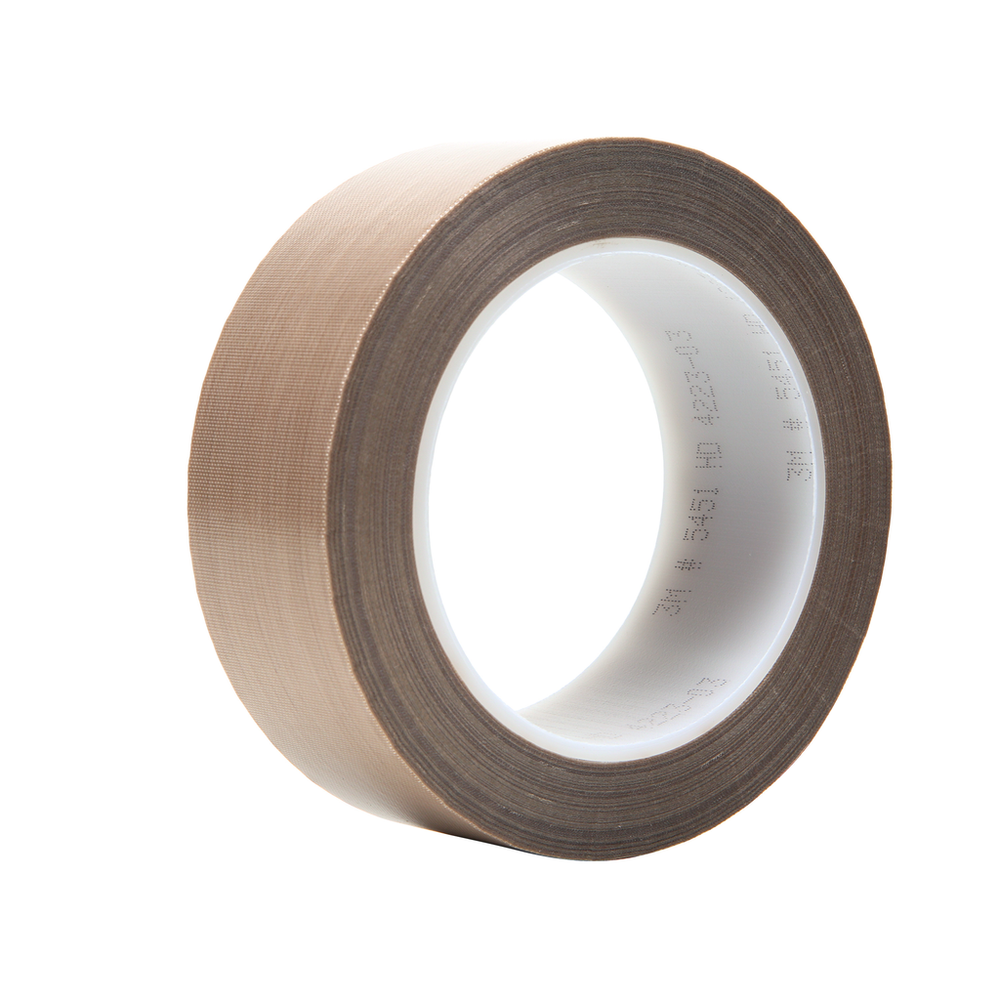

3M™ PTFE Glass Cloth Tape 5451, Brown, 1 1/2 in x 36 yd, 5.6 mil, 6 Roll/Case - 7000050134

Sold As: 6-Pack
SKU: 7000050134
MPN: 7000050134
For an accurate lead time please contact us
UPC: 00021200161537
3M ID: 70016054523
5 Digit UPC: 16153
$1,816.00 ($302.67 / Count)
Hurry up! Current stock:

Product Description

This premium performance 3M™ PTFE Glass Cloth Tape 5451 has a brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene). This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Excellent chemical resistance enables tape to withstand challenging applications
  • Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
  • Silicone adhesive offers high temperature performance and long aging
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit)500.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)1.5
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.14
Adhesive TypeSilicone
Tensile Strength (Imperial)1600.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Metric)0.08
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)3.2
Tensile Strength (Imperial) UOMoz/in
Backing (Carrier) Thickness (Metric)0.08
Tensile Strength (Metric)1760.0
Backing (Carrier) Thickness (Imperial) UOMmil
Elongation at Break5
Maximum Operating Temperature (Celsius)260.0
Product ColorBrown
Overall Length (Metric)32.91
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) MaterialGlass Cloth/PTFE
Minimum Operating Temperature (Fahrenheit)-100.0
Shelf Life UOMMonth
Total Tape Thickness without Liner (Imperial)5.6
Overall Width (Imperial) UOMin
Overall Width (Metric)38.1
Overall Length (Imperial)36.0
Units per Case6.0
Overall Length (Metric) UOMm
Tensile Strength (Metric) UOMN/100mm
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
