3M Products & Supplies

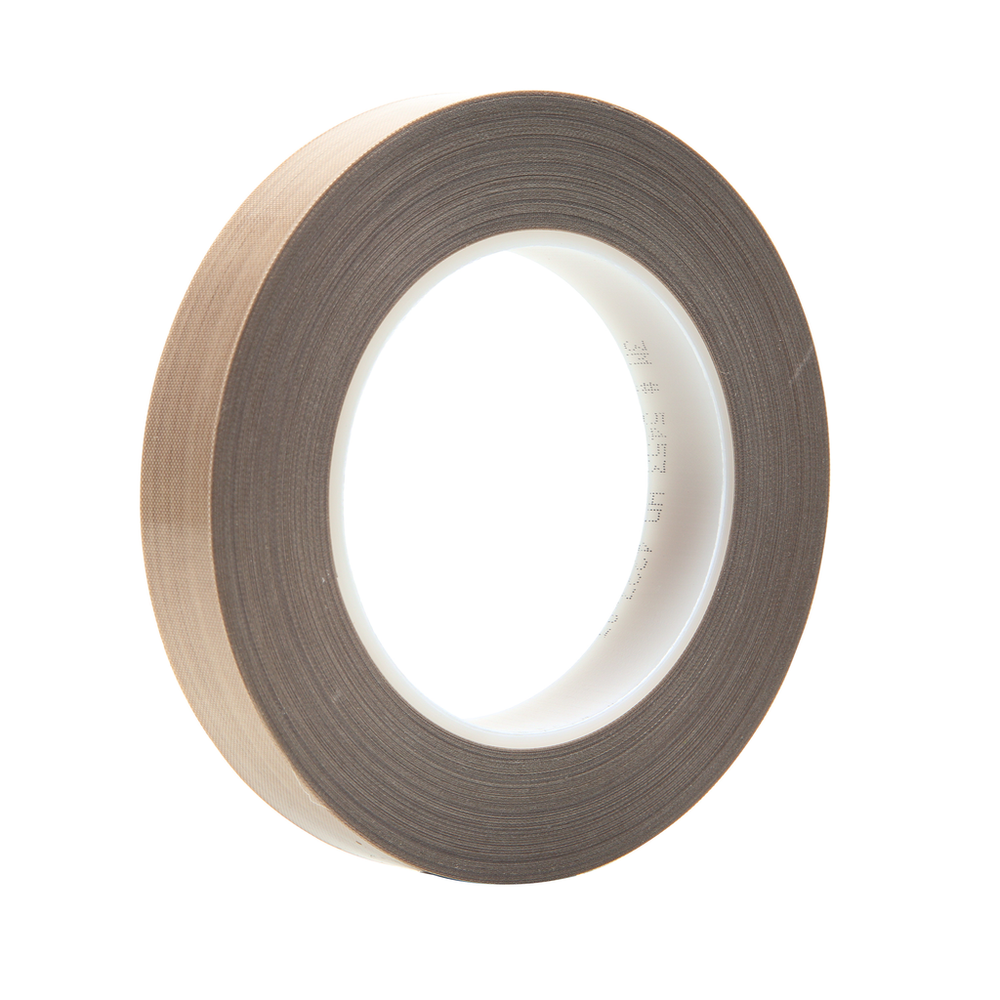

3M™ PTFE Glass Cloth Tape 5451, Brown, 1/2 in x 36 yd, 5.6 mil, 18 Roll/Case - 7010380325

Sold As: 18-Pack
SKU: 7010380325
MPN: 7010380325
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200161506
3M ID: 70016054564
5 Digit UPC: 16150
$2,179.36 ($121.08 / Count)
Hurry up! Current stock:

Product Description

This premium performance 3M™ PTFE Glass Cloth Tape 5451 has a brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene). This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Silicone adhesive offers high temperature performance and long aging
  • Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Excellent chemical resistance enables tape to withstand challenging applications
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)-100.0
Product ColorBrown
Elongation at Break5
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
Tensile Strength (Imperial) UOMoz/in
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)260.0
Units per Case18.0
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial)0.5
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Metric)1760.0
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.14
Overall Width (Metric)12.7
Total Tape Thickness without Liner (Imperial)5.6
Adhesive TypeSilicone
Backing (Carrier) MaterialGlass Cloth/PTFE
Tensile Strength (Imperial)1600.0
Back Side Adhesive Thickness (Metric)0.08
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Length (Imperial)36.0
Overall Length (Metric)32.91
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.08
Backing (Carrier) Thickness (Imperial)3.2
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)500.0
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric) UOMmm
