3M Products & Supplies

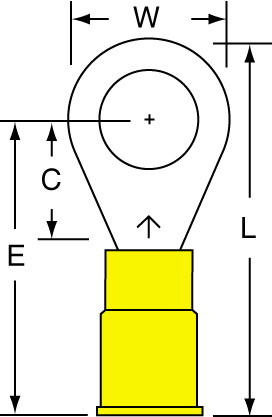

3M™ Ring Tongue, Nylon Insulated w/Insulation Grip 12-10 AWG, 94748, 13-56S-NB - 7010397383

Sold As: 10-Pack
SKU: 7010397383
MPN: 7010397383
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007947486
3M ID: 80611252489
MPN: 94748
$146.84 ($14.68 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric)7.95
Connection TypeCrimp
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Country of OriginUnited States
Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)3.31 mm²
Insulation MaterialNylon with Insulation Grip
Stud Size0.3125 in
Barrel StyleBrazed
UL File NumberE23438
Ring TypeStandard
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)175.0
Terminal StyleStandard
Maximum Conductor Size (Imperial)10 AWG
Terminal TypeRing
Maximum Conductor Size (Metric)5.26
Minimum Conductor Size (Imperial)12 AWG
