3M Products & Supplies

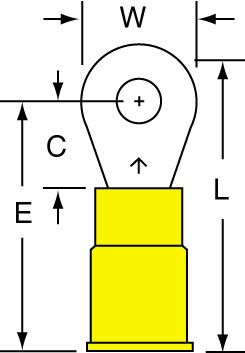

3M™ Ring Tongue Terminal Nylon Insulated w/Insulation Grip 12-10 AWG, 94750, 13-6S-NB - 7010397384

Sold As: 10-Pack
SKU: 7010397384
MPN: 7010397384
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007947509
3M ID: 80611252505
MPN: 94750
$146.84 ($14.68 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Barrel StyleBrazed
Country of OriginUnited States
Maximum Conductor Size (Metric)5.26
UL File NumberE23438
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Ring TypeStandard
Minimum Stud Diameter (Imperial) UOMin
Terminal TypeRing
Minimum Conductor Size (Metric)3.31 mm²
Insulation MaterialNylon with Insulation Grip
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleStandard
Stud Size0.138 in
Minimum Stud Diameter (Metric)3.5
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)175.0
Connection TypeCrimp
Minimum Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Imperial)12 AWG
