3M Products & Supplies

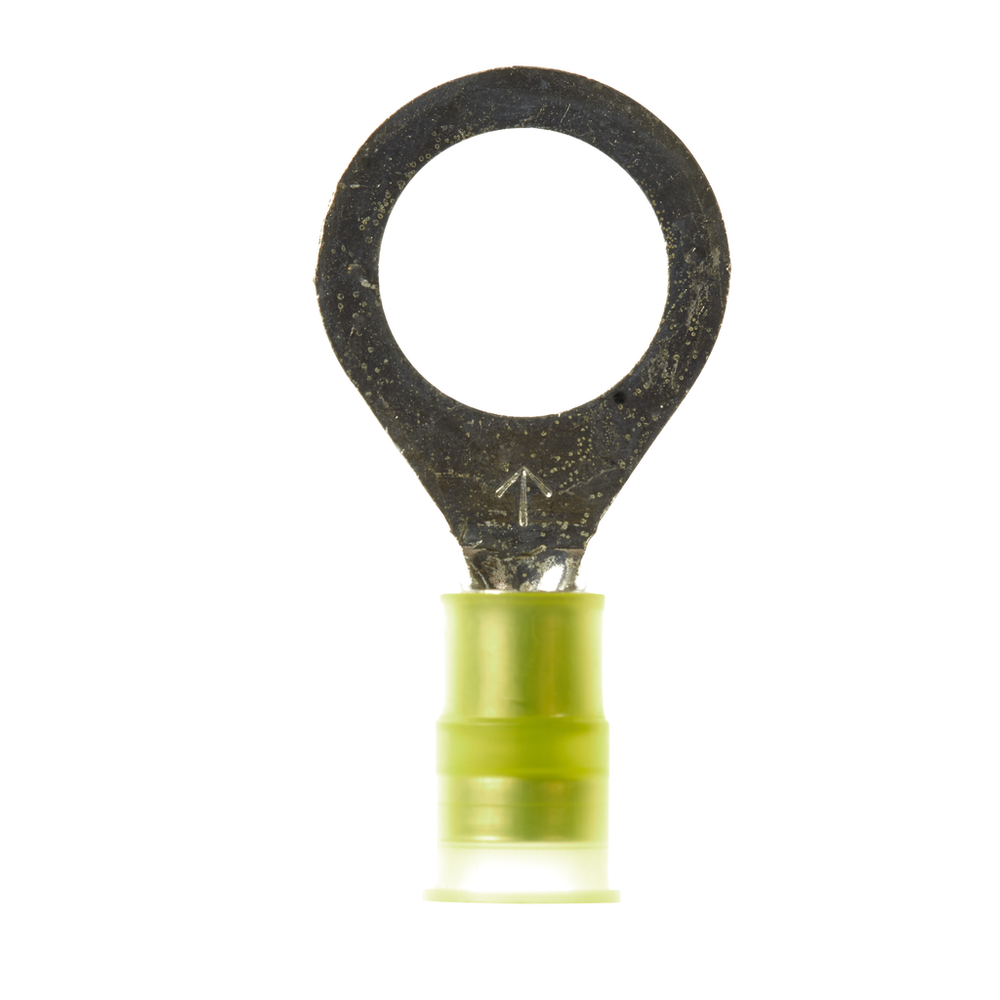

3M™ Ring Tongue Terminal Nylon Insulated w/Insulation Grip, 12-10 AWG, 94746, 13-500-NB - 7010349243

Sold As: 10-Pack
SKU: 7010349243
MPN: 7010349243
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007947462
3M ID: 80611252463
MPN: 94746
$240.49 ($24.05 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Connection TypeCrimp
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeRing
Maximum Operating Temperature (Celsius) UOMDegree
Stud Size0.5 in
Minimum Conductor Size (Imperial)12 AWG
Barrel StyleBrazed
UL File NumberE23438
Insulation MaterialNylon with Insulation Grip
Minimum Stud Diameter (Metric)12.7
Minimum Stud Diameter (Metric) UOMmm
Ring TypeStandard
Maximum Operating Temperature (Celsius)175.0
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Metric)3.31 mm²
Terminal StyleStandard
Maximum Conductor Size (Metric)5.26
Minimum Stud Diameter (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
