3M Products & Supplies

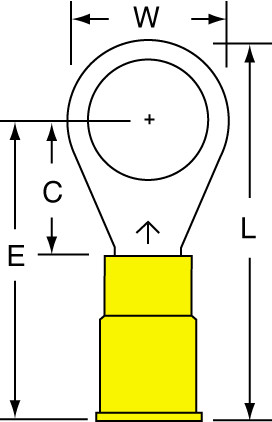

3M™ Ring Tongue Terminal Nylon Insulated w/Insulation Grip 12-10 AWG, 94744, 13-38-NB, 10 Bags/Case - 7010319492

Sold As: 10-Pack
SKU: 7010319492
MPN: 7010319492
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007947448
3M ID: 80611252448
MPN: 94744
$162.50 ($16.25 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Maximum Conductor Size (Imperial)10 AWG
UL File NumberE23438
Terminal TypeRing
Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Imperial) UOMin
Terminal StyleStandard
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Imperial)12 AWG
Stud Size0.375 in
Minimum Stud Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)3.31 mm²
Insulation MaterialNylon with Insulation Grip
Ring TypeStandard
Barrel StyleBrazed
Maximum Operating Temperature (Celsius)175.0
Maximum Conductor Size (Metric)5.26
Connection TypeCrimp
Minimum Stud Diameter (Metric)9.525
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
