3M Products & Supplies

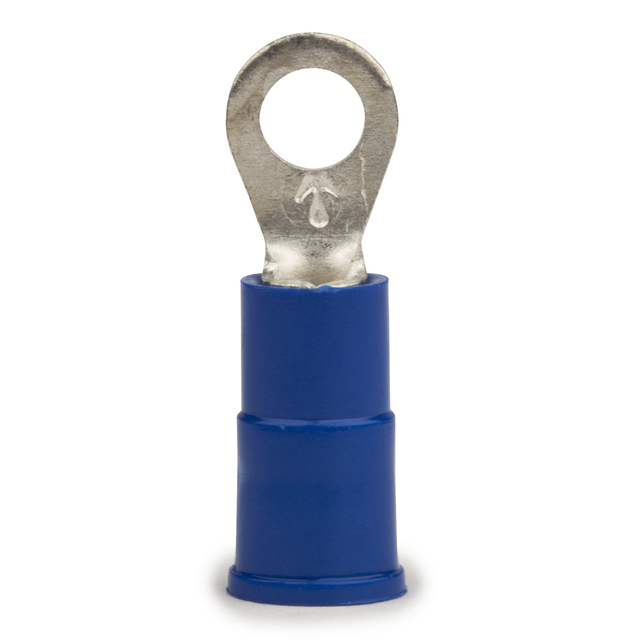

3M™ Ring Tongue, Vinyl Insulated Butted Seam 12-10, 94741, 13-10-P - 7010397380

Sold As: 10-Pack
SKU: 7010397380
MPN: 7010397380
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007947417
3M ID: 80611252414
MPN: 94741
$98.07 ($9.81 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Maximum Operating Temperature (Celsius)175.0
Minimum Stud Diameter (Metric) UOMmm
Connection TypeCrimp
Maximum Conductor Size (Metric)5.26
Minimum Conductor Size (Metric)3.31 mm²
UL File NumberE23438
Ring TypeStandard
Country of OriginUnited States
Maximum Conductor Size (Imperial)10 AWG
Barrel StyleBrazed
Minimum Stud Diameter (Imperial) UOMin
Terminal StyleStandard
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric)5.0
Stud Size0.19 in
Barrel Length (Imperial)0.25 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialVinyl
Terminal TypeRing
