3M Products & Supplies

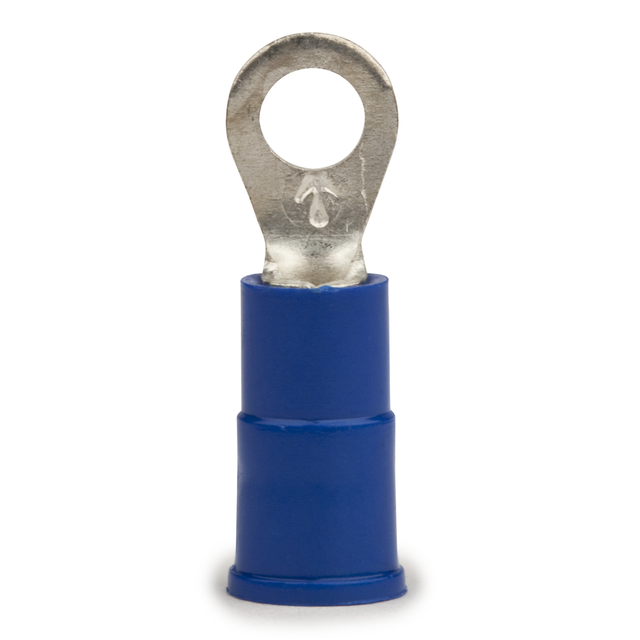

3M™ Ring Tongue, Vinyl Insulated Butted Seam 12-10, 94745, 13-38-P - 7010397382

Sold As: 10-Pack
SKU: 7010397382
MPN: 7010397382
For an accurate lead time please contact us
UPC: 00054007947455
3M ID: 80611252455
MPN: 94745
$122.64 ($12.26 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)3.31 mm²
Terminal TypeRing
Ring TypeStandard
Barrel StyleBrazed
Terminal StyleStandard
Maximum Conductor Size (Metric)5.26
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius)175.0
Connection TypeCrimp
Stud Size0.375 in
Insulation MaterialVinyl
Minimum Stud Diameter (Imperial) UOMin
Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric)9.525
Maximum Conductor Size (Imperial)10 AWG
UL File NumberE23438
