3M Products & Supplies

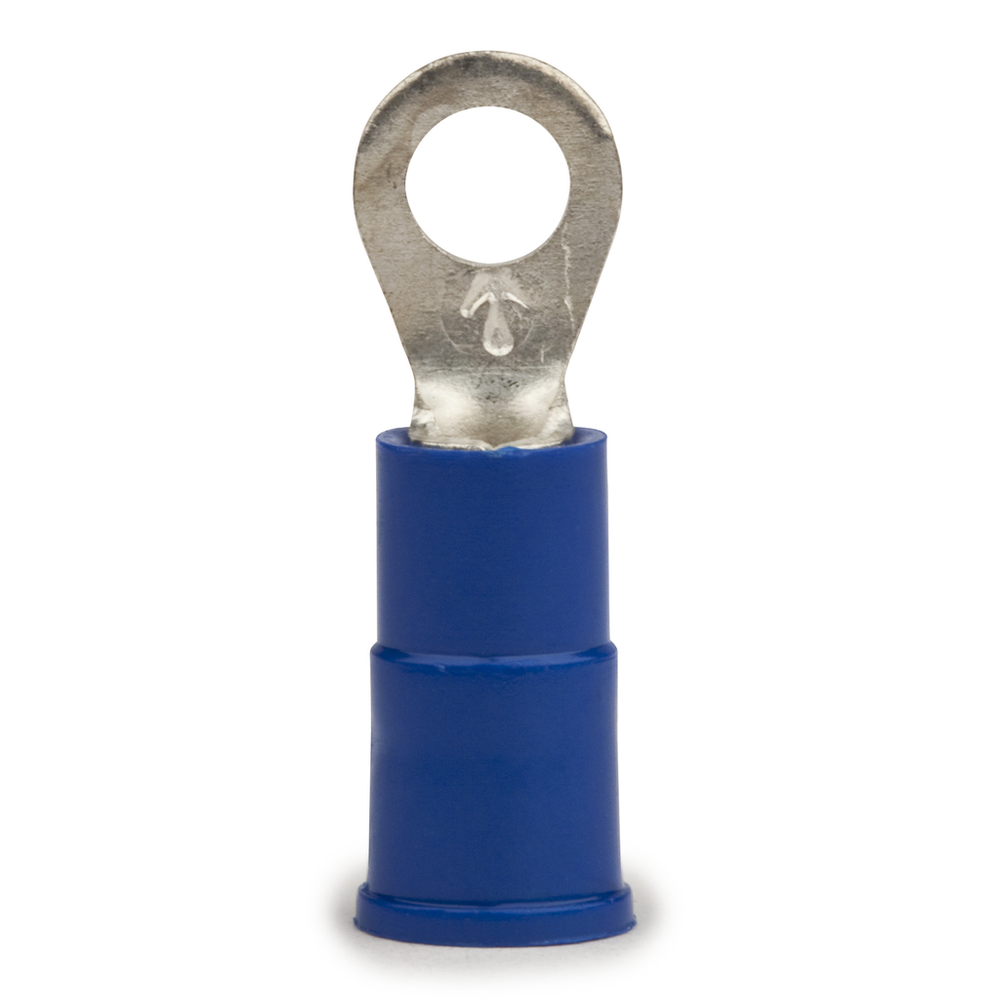

3M™ Ring Tongue, Vinyl Insulated Butted Seam 12-10 AWG, 94747, 13-500-P - 7010297780

Sold As: 10-Pack
SKU: 7010297780
MPN: 7010297780
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007947479
3M ID: 80611252471
MPN: 94747
$188.57 ($18.86 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Stud Size0.5 in
Minimum Stud Diameter (Imperial) UOMin
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Imperial)12 AWG
Minimum Stud Diameter (Metric)12.7
UL File NumberE23438
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeRing
Maximum Conductor Size (Imperial)10 AWG
Ring TypeStandard
Insulation MaterialVinyl
Terminal StyleStandard
Maximum Conductor Size (Metric)5.26
Maximum Operating Temperature (Celsius)175.0
Barrel Length (Imperial)0.25 Inch
Barrel StyleBrazed
Minimum Stud Diameter (Metric) UOMmm
Connection TypeCrimp
Minimum Conductor Size (Metric)3.31 mm²
