3M Products & Supplies

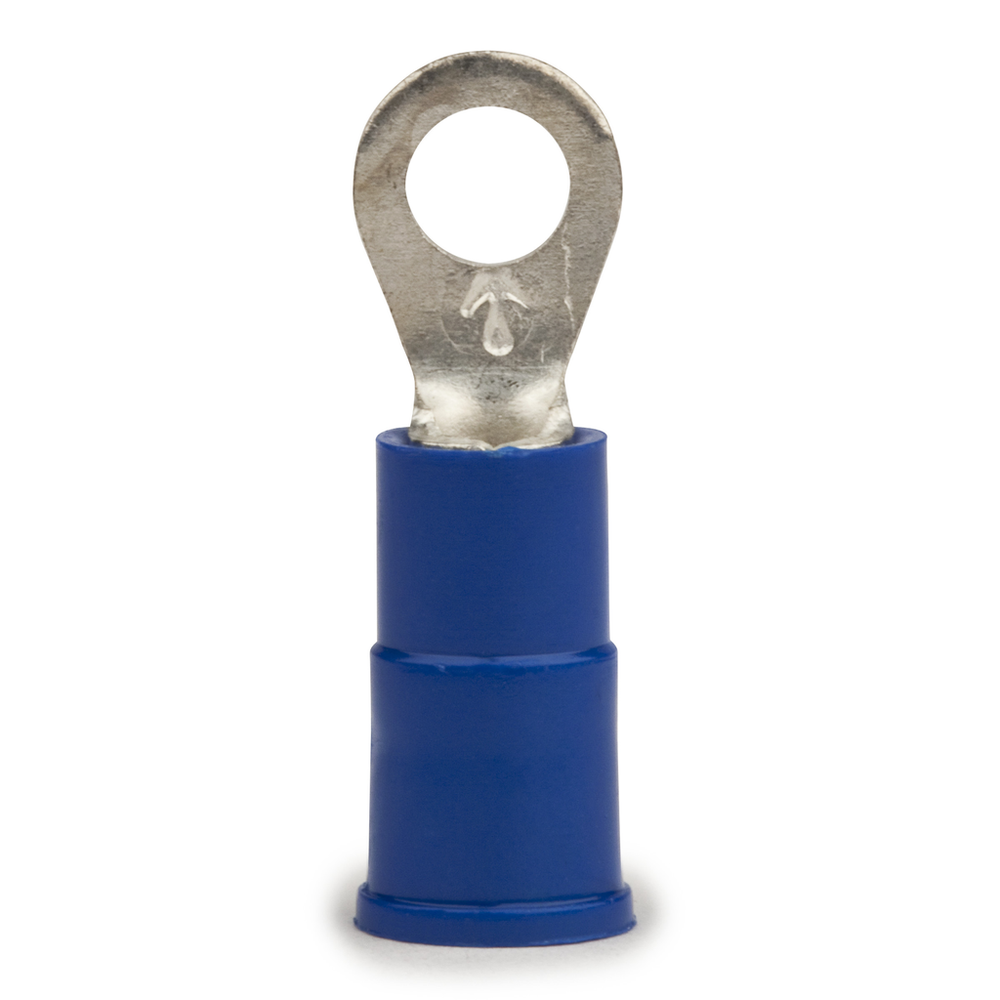

3M™ Ring Tongue, Vinyl Insulated Butted Seam 16-14, 94729, 12-10-P - 7010397275

Sold As: 10-Pack
SKU: 7010397275
MPN: 7010397275
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007947295
3M ID: 80611252299
MPN: 94729
$146.84 ($14.68 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

UL File NumberE23438
Terminal StyleStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeRing
Barrel StyleBrazed
Minimum Stud Diameter (Metric)5.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)175.0
Minimum Stud Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)1.31 mm²
Ring TypeStandard
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Imperial)14 AWG
Country of OriginUnited States
Maximum Conductor Size (Metric)2.08
Minimum Conductor Size (Imperial)16 AWG
Minimum Stud Diameter (Imperial) UOMin
Stud Size0.19 in
Insulation MaterialVinyl
Connection TypeCrimp
