3M Products & Supplies

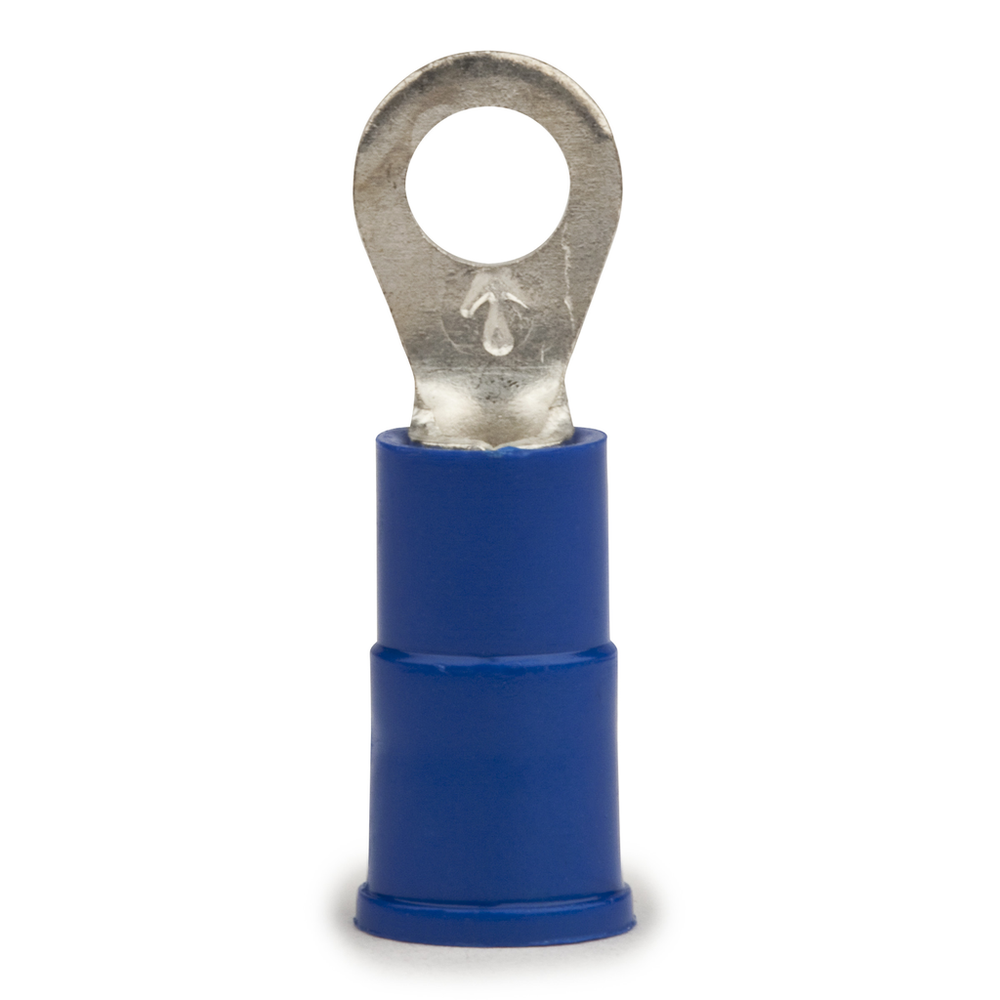

3M™ Ring Tongue, Vinyl Insulated Butted Seam 16-14, 94731, 12-14S-P - 7010291855

Sold As: 10-Pack
SKU: 7010291855
MPN: 7010291855
For an accurate lead time please contact us
UPC: 00054007947318
3M ID: 80611252315
MPN: 94731
$196.06 ($19.61 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Barrel Length (Imperial)0.25 Inch
Barrel StyleBrazed
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)14 AWG
Stud Size0.25 in
Maximum Conductor Size (Metric)2.08
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius)175.0
Insulation MaterialVinyl
Ring TypeStandard
Minimum Stud Diameter (Metric)6.35
Terminal StyleStandard
Terminal TypeRing
UL File NumberE23438
Minimum Conductor Size (Imperial)16 AWG
Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric) UOMmm
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Connection TypeCrimp
