3M Products & Supplies

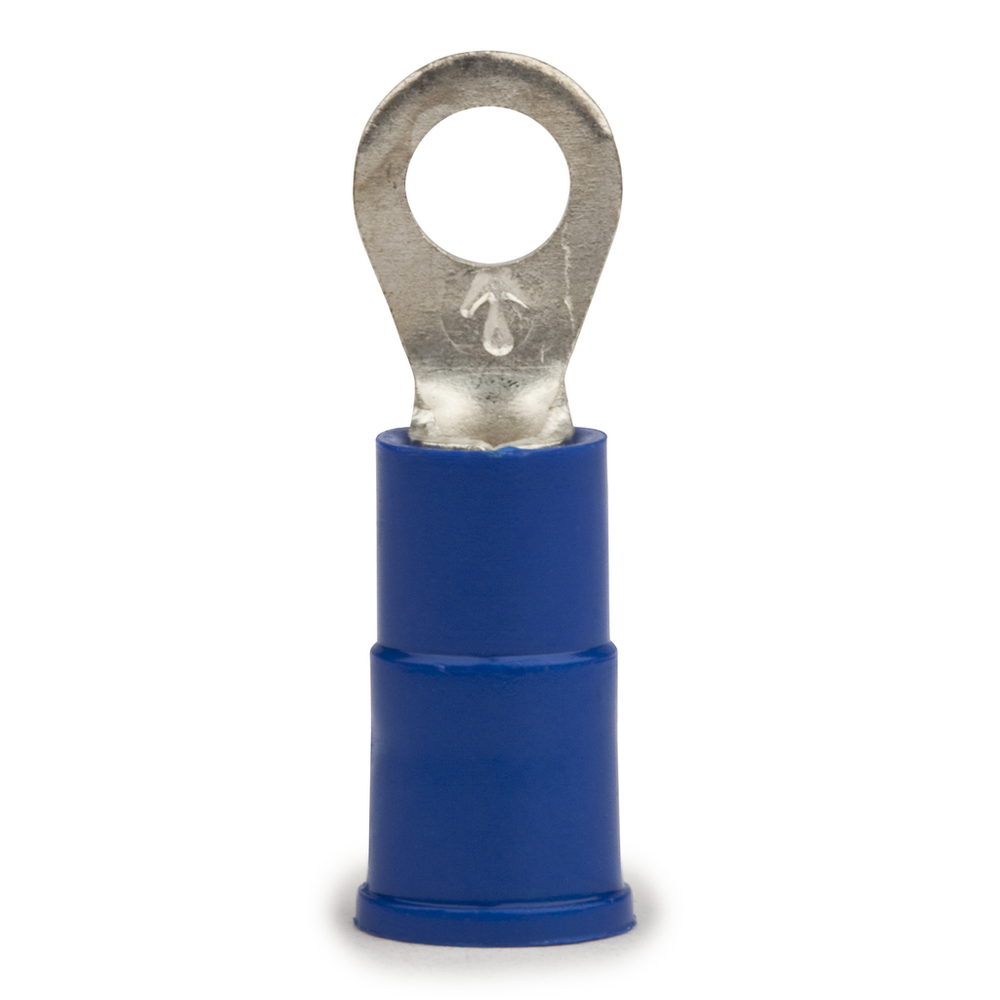

3M™ Ring Tongue, Vinyl Insulated Butted Seam 16-14, 94735, 12-56S-P - 7010319491

Sold As: 10-Pack
SKU: 7010319491
MPN: 7010319491
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007947356
3M ID: 80611252356
MPN: 94735
$245.06 ($24.51 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Maximum Operating Temperature (Celsius)175.0
Minimum Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Barrel StyleBrazed
Ring TypeStandard
Minimum Stud Diameter (Metric)7.95
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection TypeCrimp
UL File NumberE23438
Insulation MaterialVinyl
Minimum Stud Diameter (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)2.08
Maximum Conductor Size (Imperial)14 AWG
Terminal TypeRing
Maximum Operating Temperature (Celsius) UOMDegree
Stud Size0.313 in
Terminal StyleStandard
Country of OriginUnited States
Minimum Conductor Size (Metric)1.31 mm²
