3M Products & Supplies

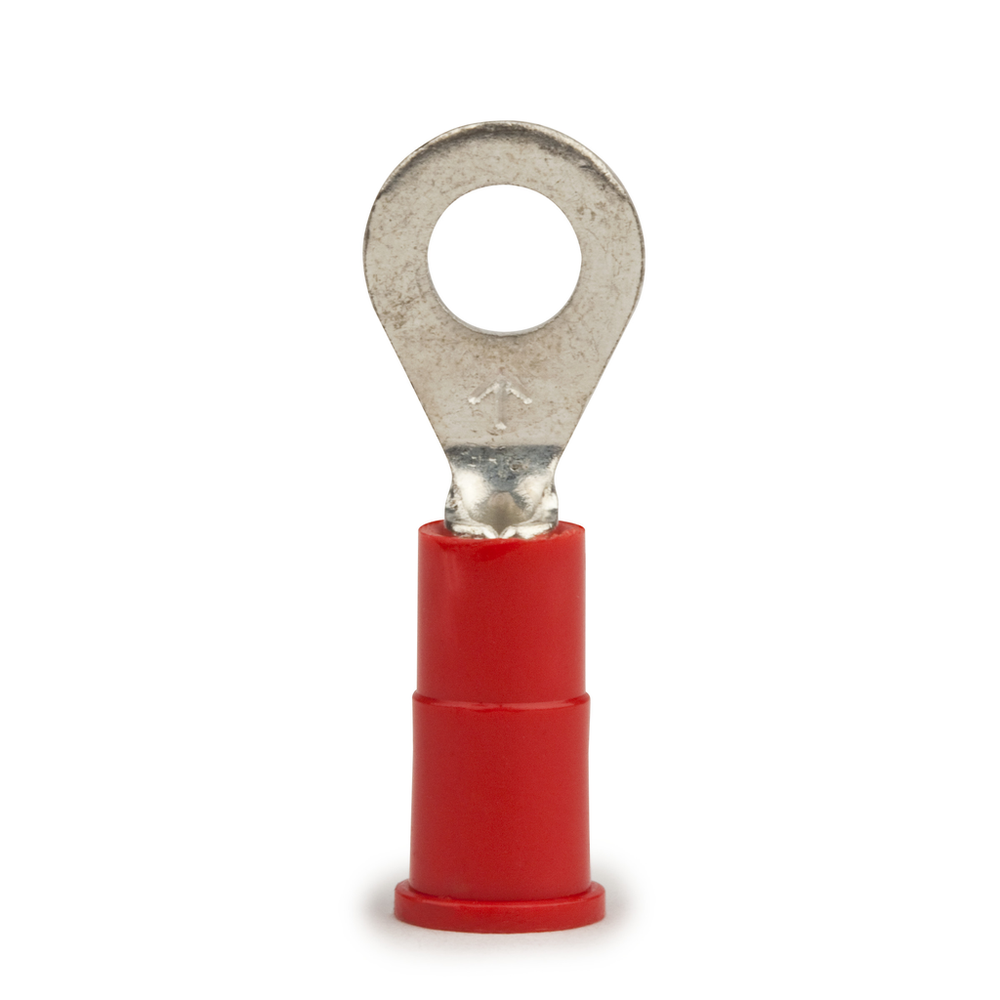

3M™ Ring Tongue, Vinyl Insulated Butted Seam 22-18, 94719, 11-14S-P - 7100164984

Sold As: 10-Pack
SKU: 7100164984
MPN: 7100164984
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007947196
3M ID: 80611252190
MPN: 94719
$196.06 ($19.61 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)22 AWG
Minimum Stud Diameter (Metric)6.35
Terminal TypeRing
Stud Size0.25 in
Connection TypeCrimp
Country of OriginUnited States
Barrel StyleBrazed
Maximum Conductor Size (Imperial)18 AWG
Ring TypeStandard
Maximum Operating Temperature (Celsius)175.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialVinyl
UL File NumberE23438
Minimum Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Metric)0.823
Minimum Conductor Size (Metric)0.326 mm²
Minimum Stud Diameter (Metric) UOMmm
Terminal StyleStandard
